Sports Utility E-Bike
The all-terrain, all-purpose Forerunner is a strong and sturdy option for those who need their E-Bike for a variety of jobs. Whether its for your commute, a grocery run, or just a joyride, the Forerunner will get it done.

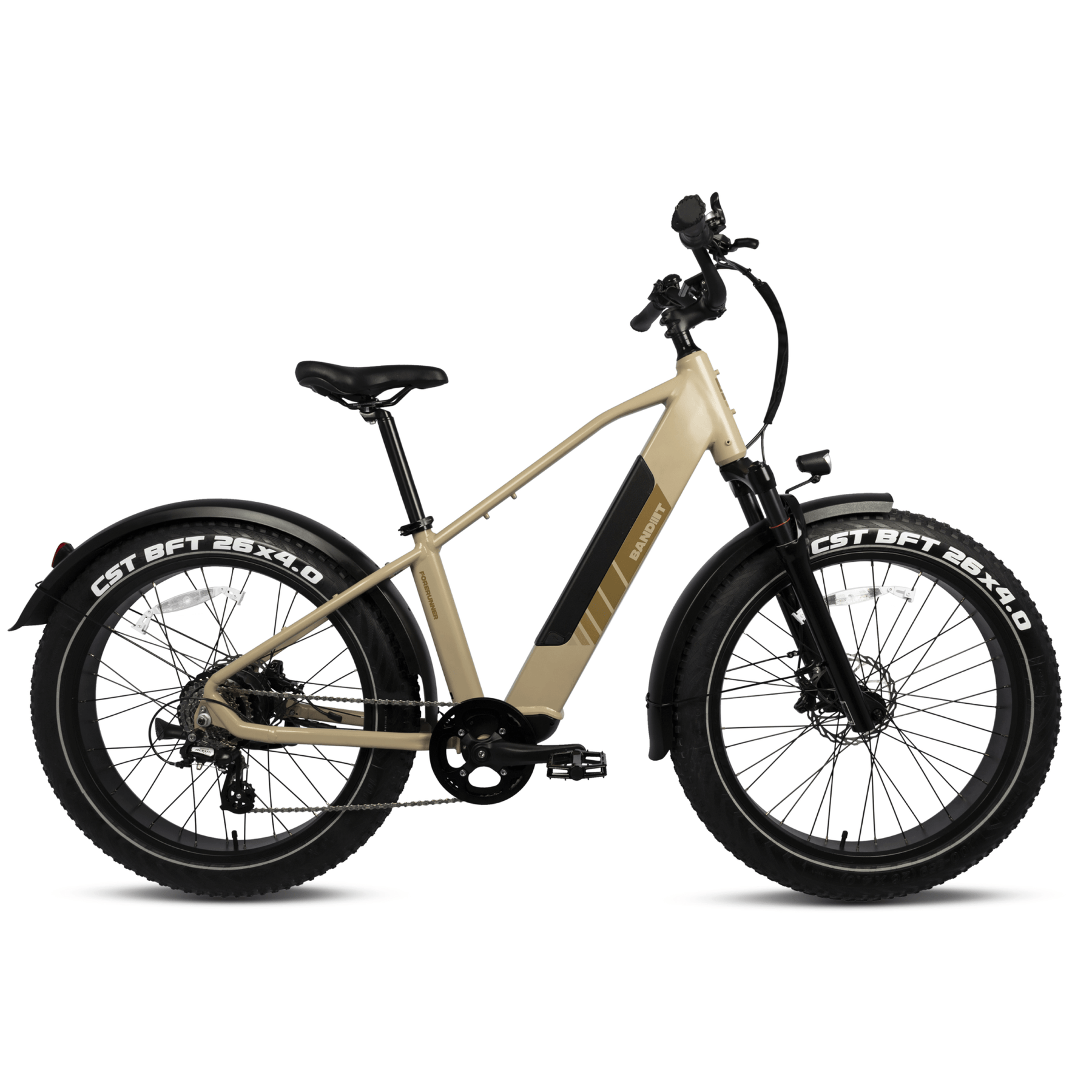

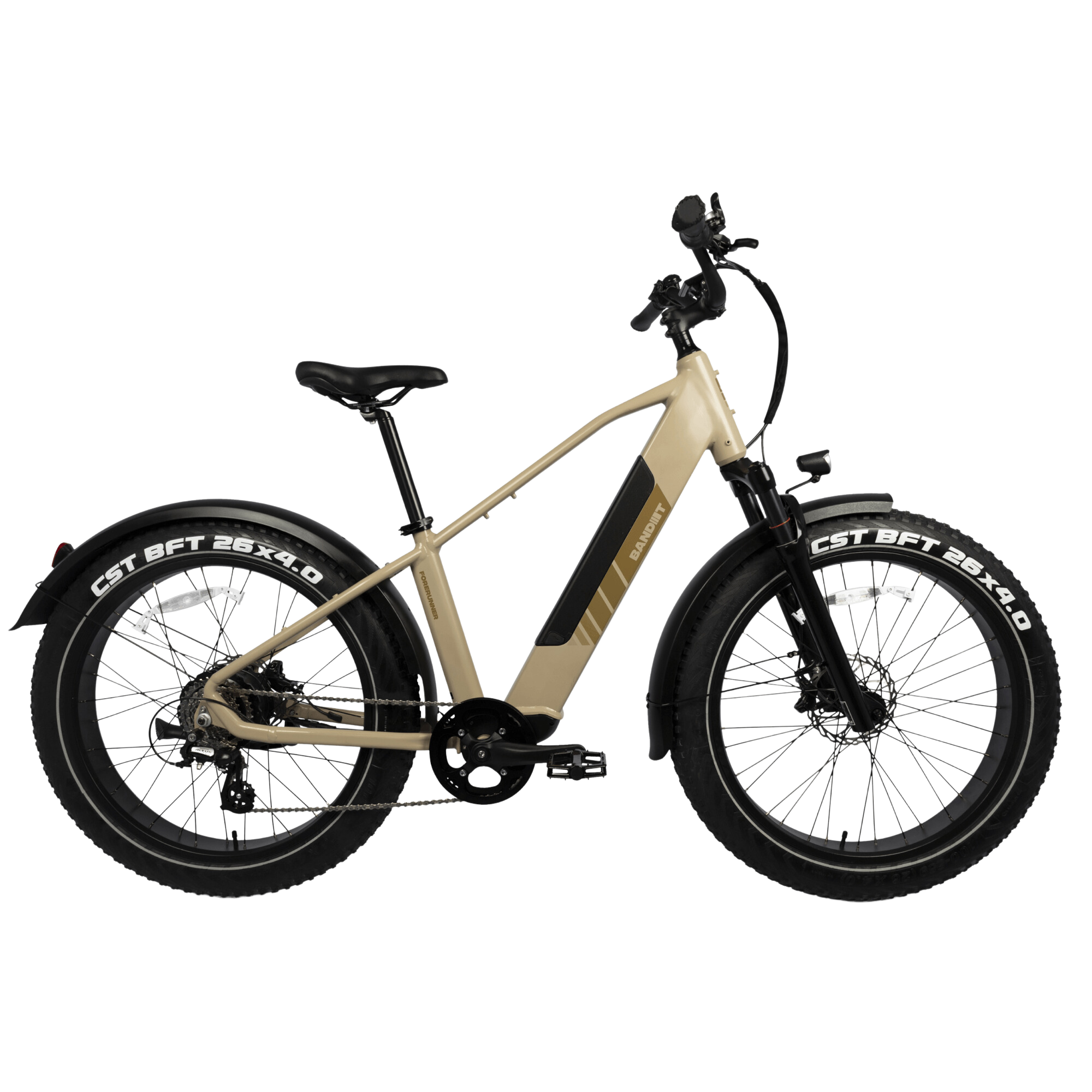

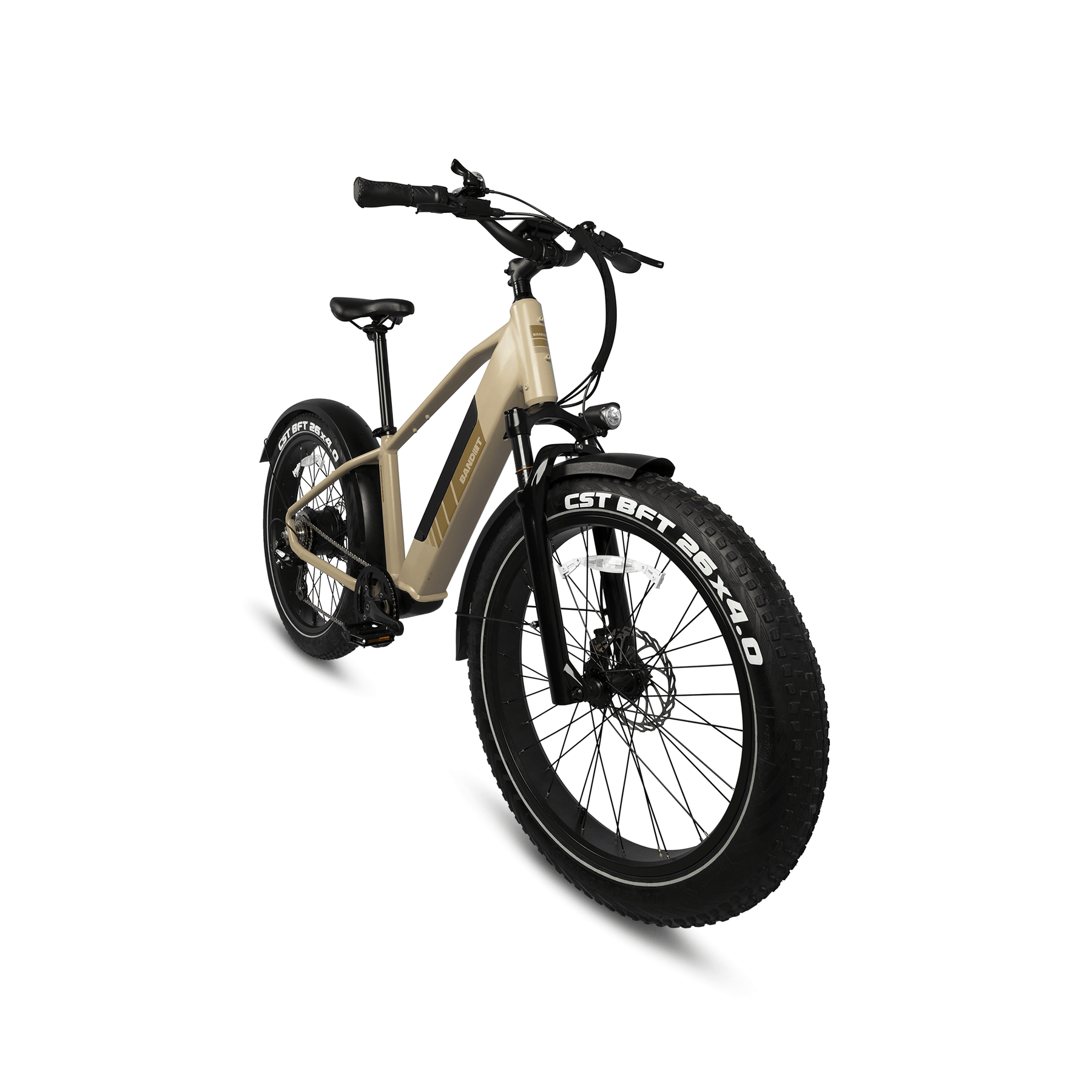

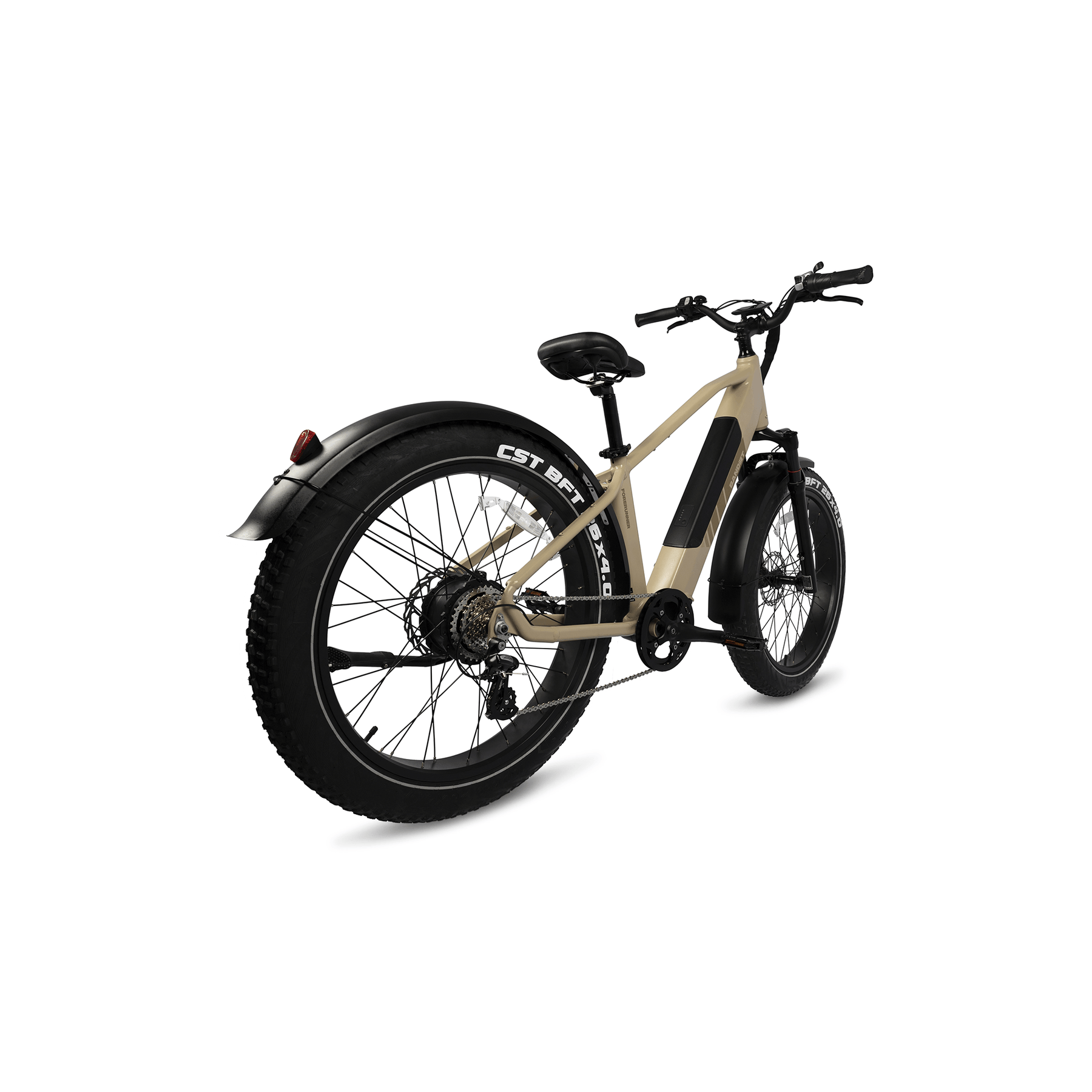

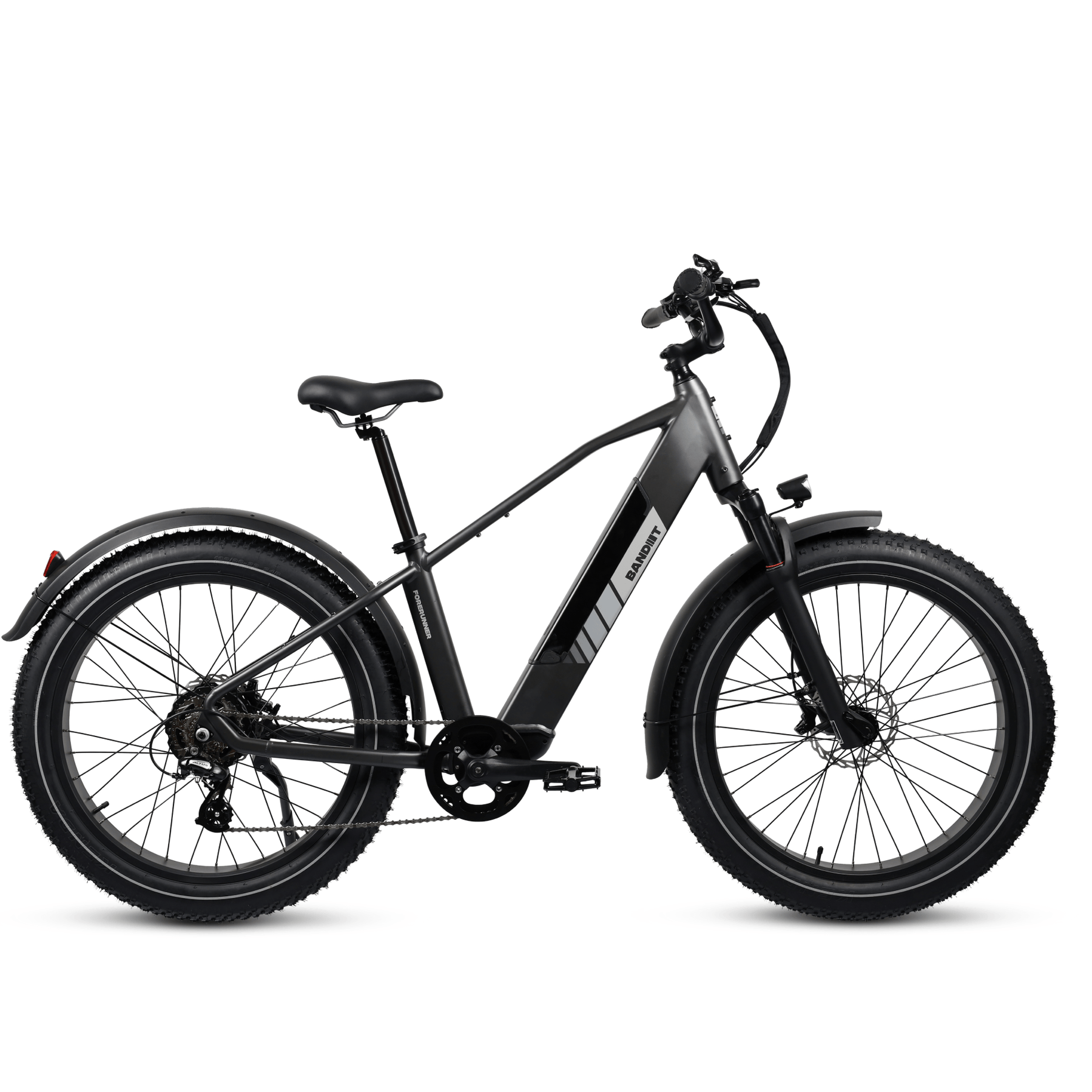

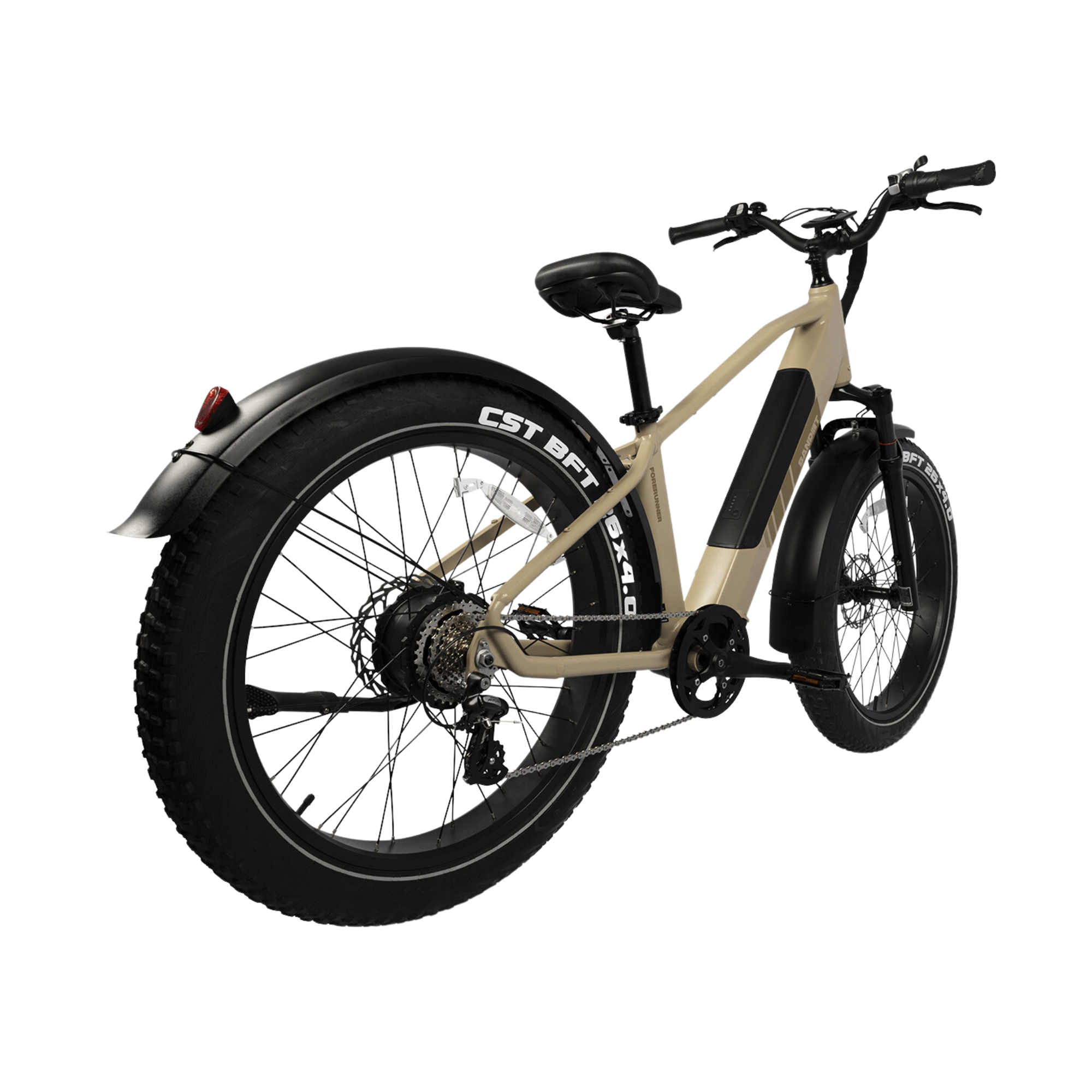

Forerunner High-Step
Robust and reliable. Built to make your all-terrain adventures easy.
Color
750W Motor
65 mile range
28mph top speed
48V 14.5AH Battery
Climber & Grappler
Joyrider

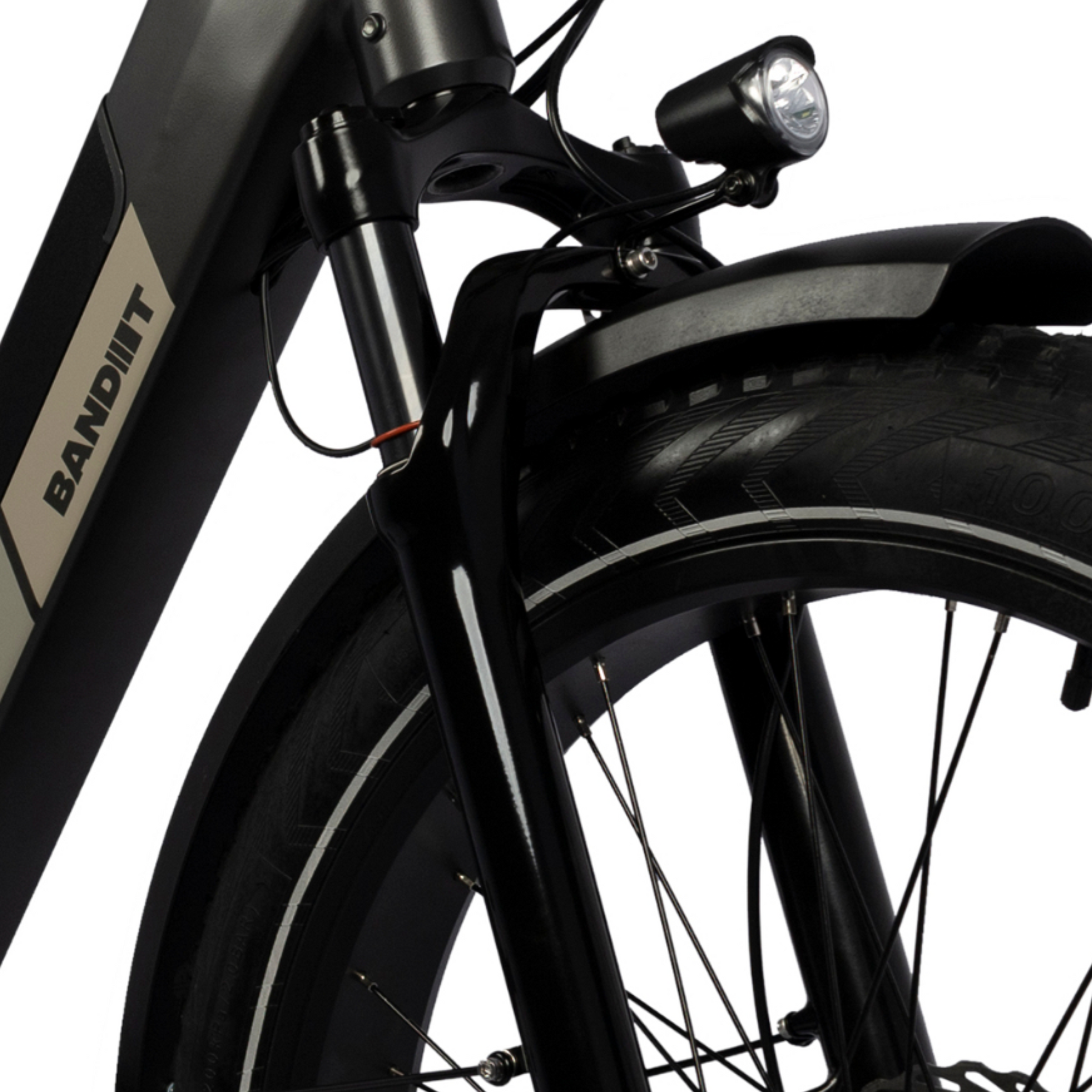

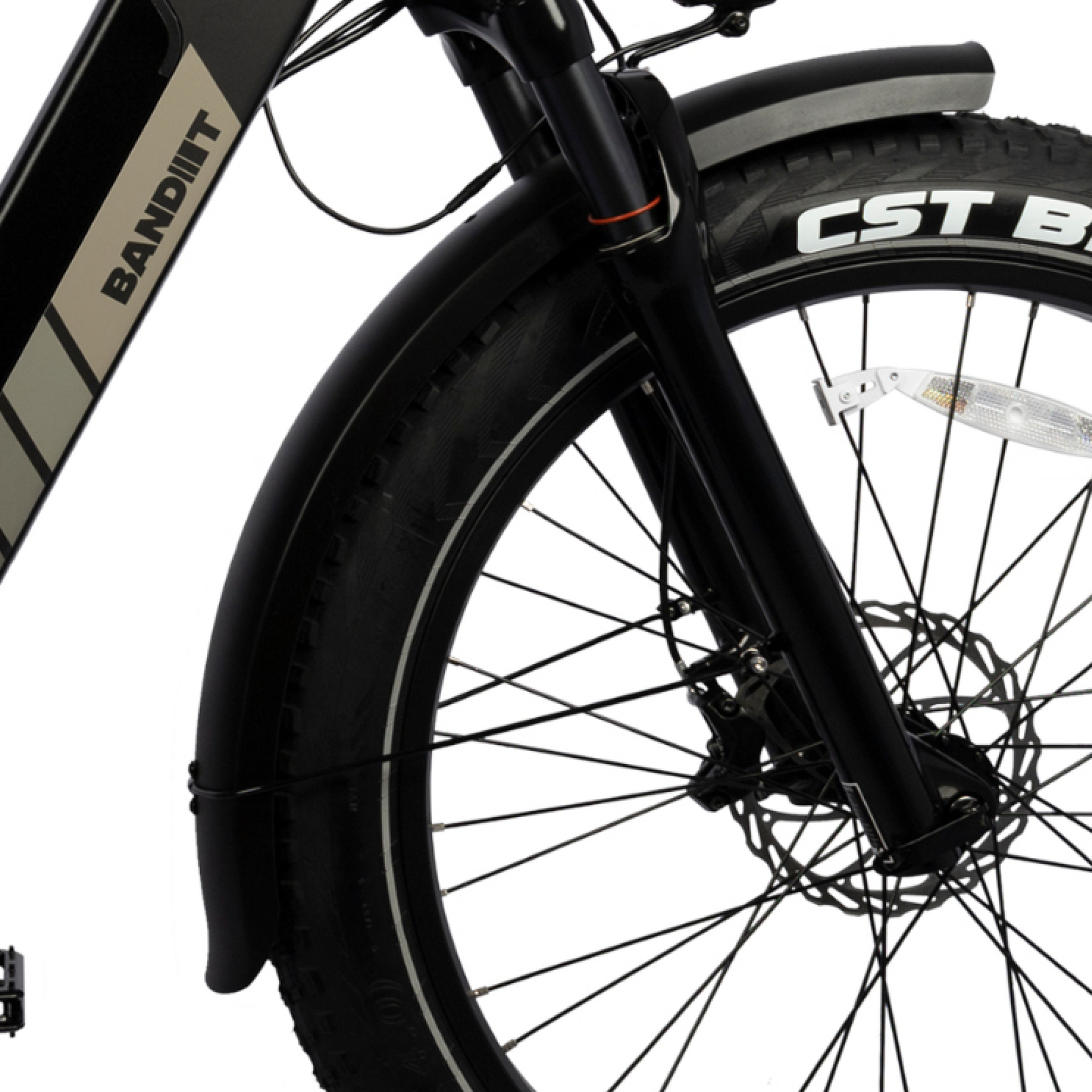

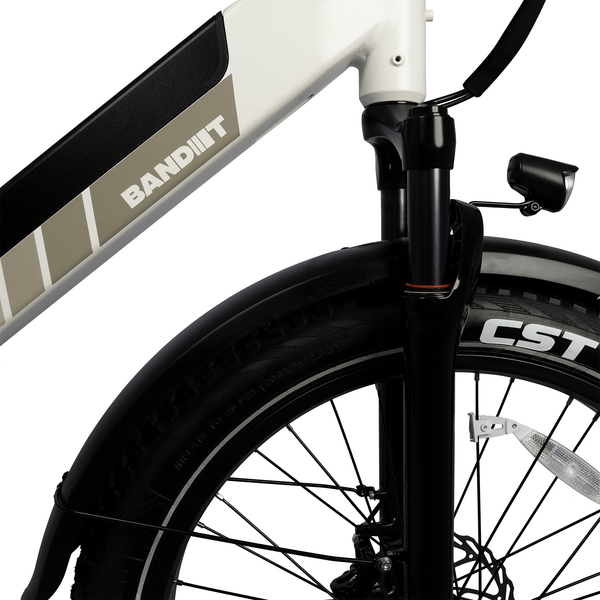

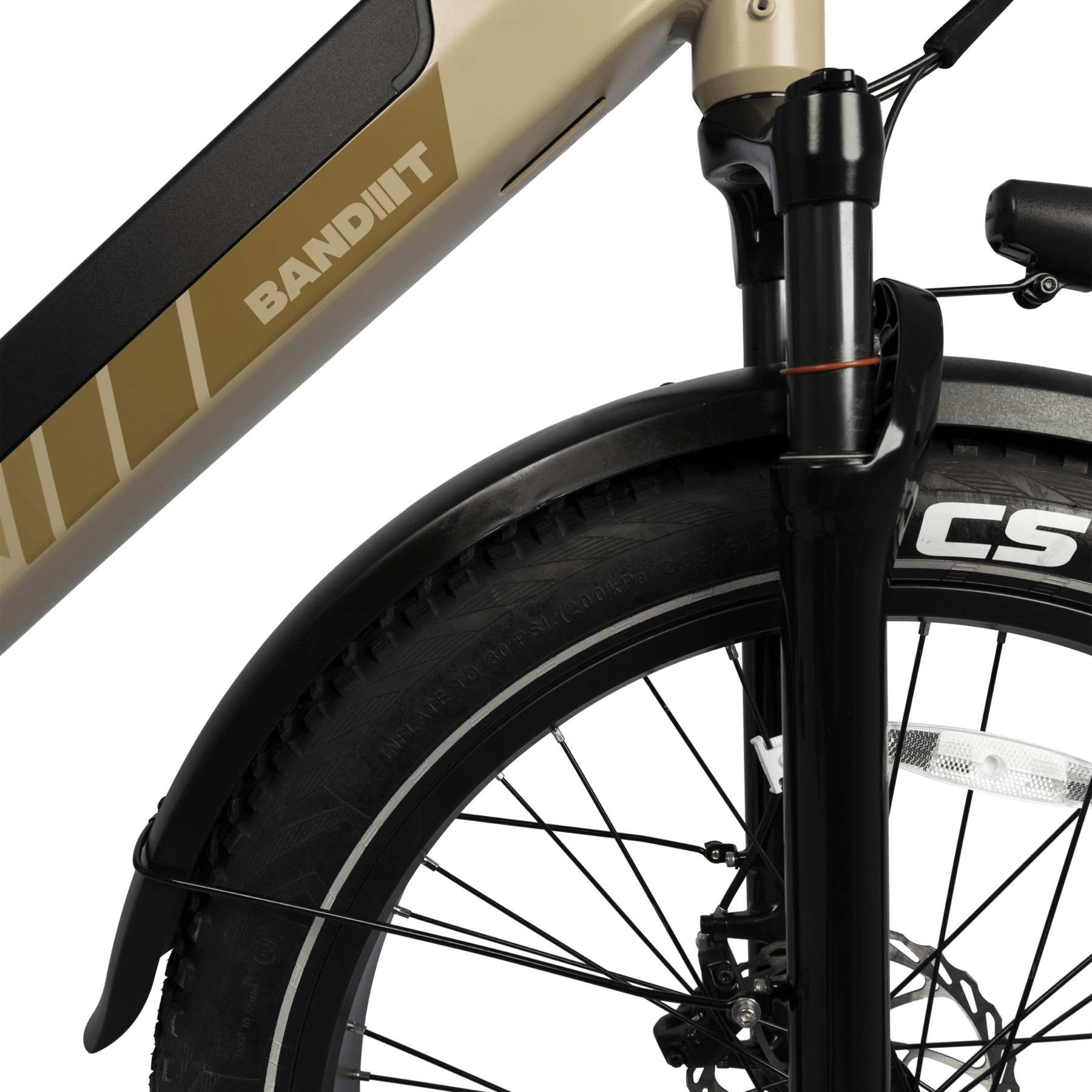

Front Suspension
Tackle tough terrain and cushion bumps with up to 75mm of travel.

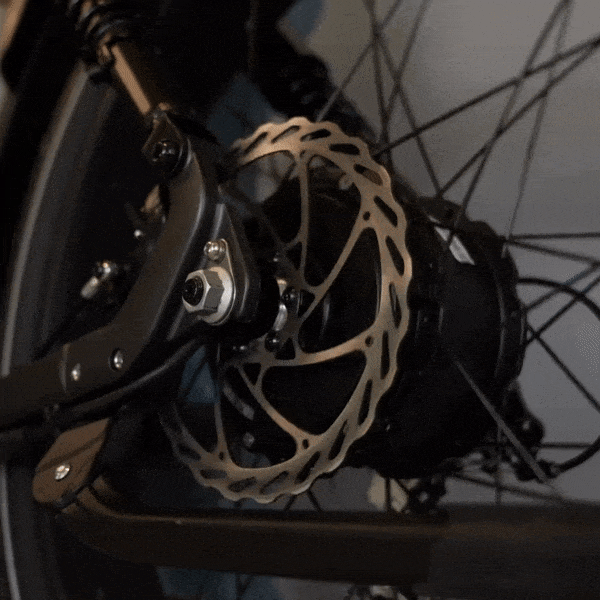

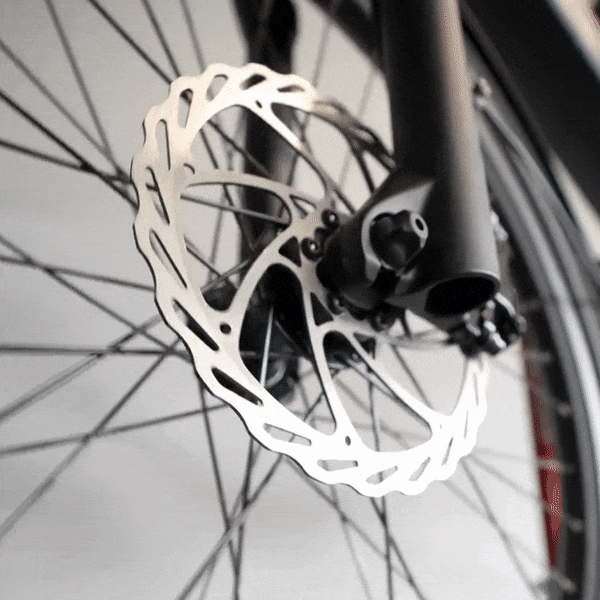

Hydraulic Brakes
Hydraulic-disc brakes offer enhanced safety when braking on different terrain and in varying weather conditions.

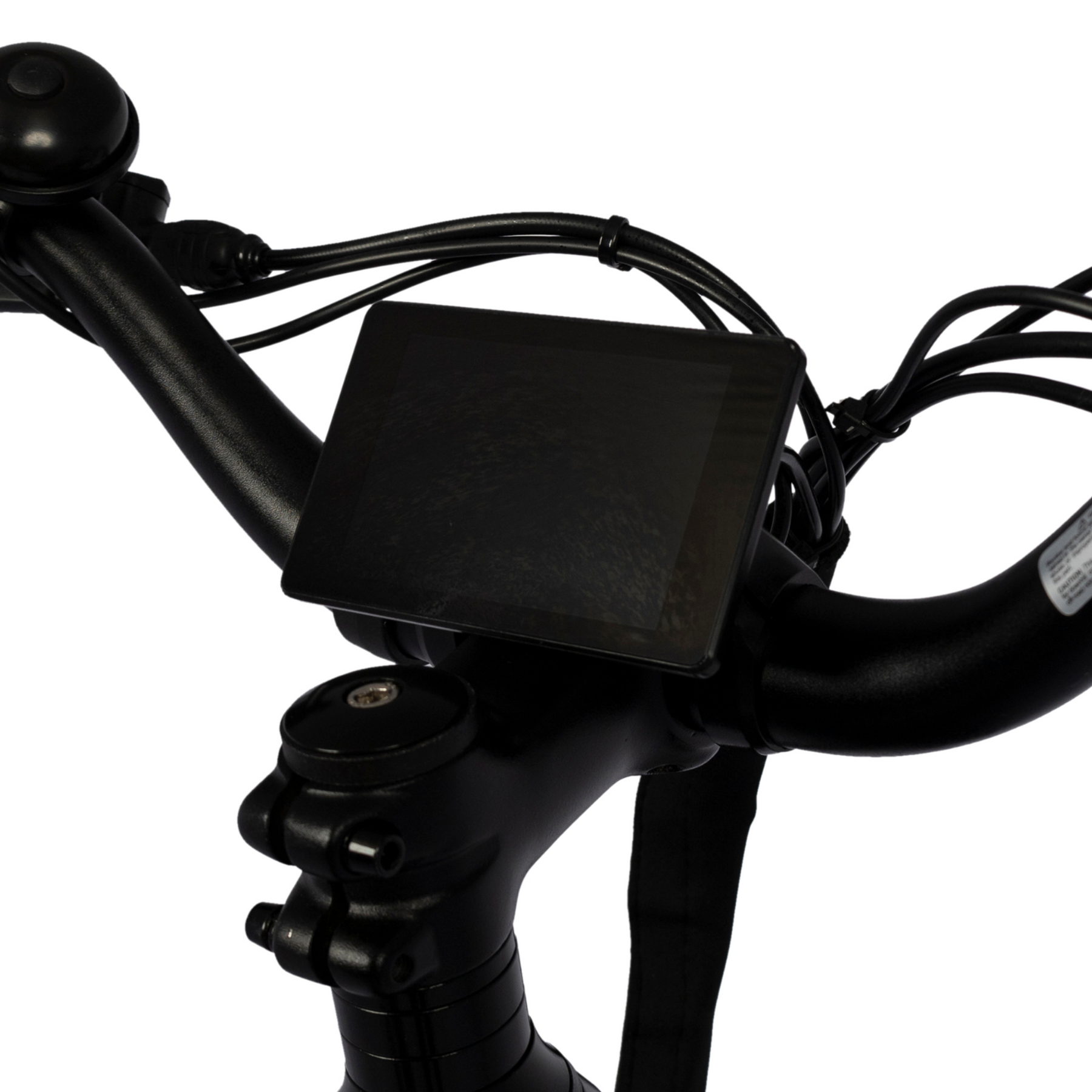

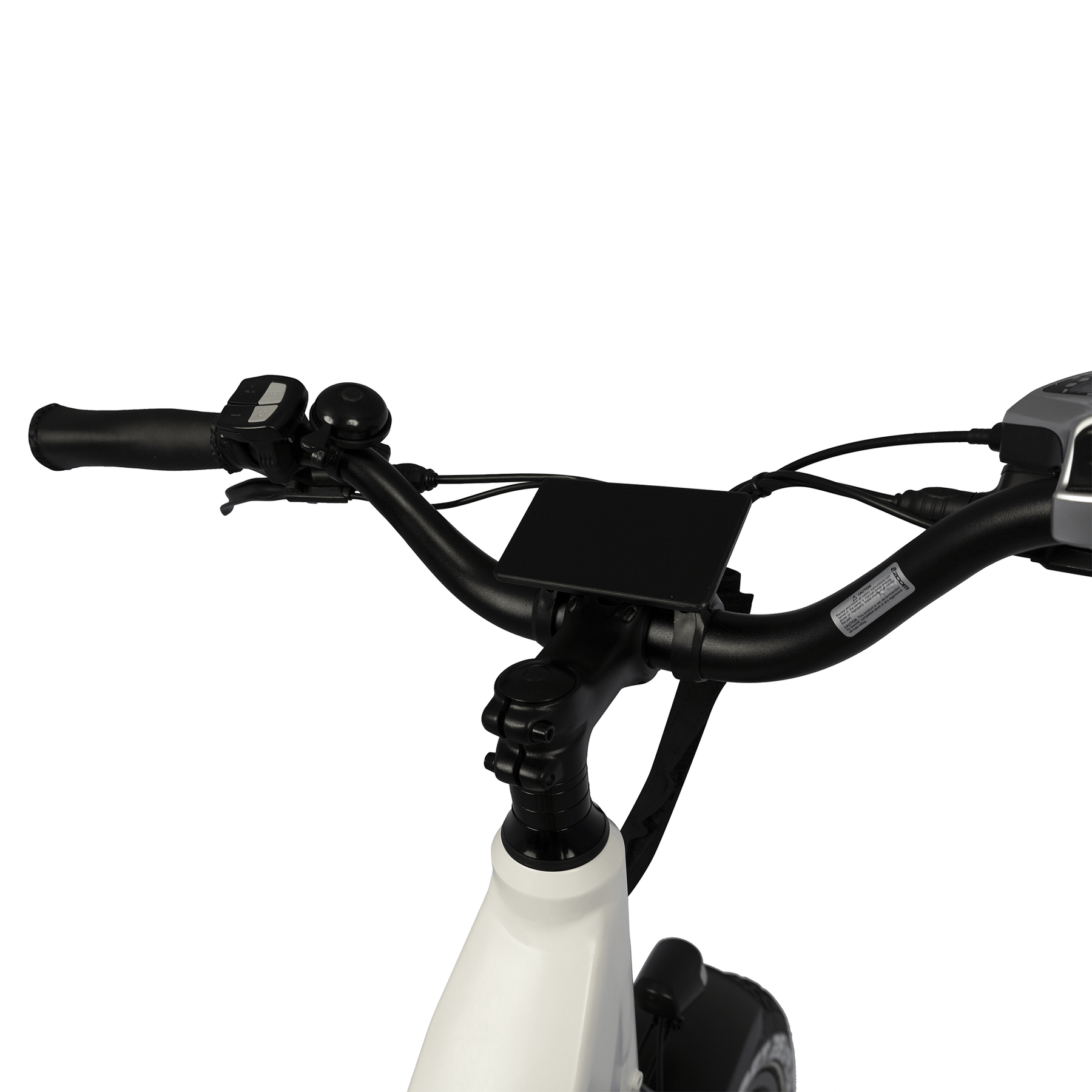

Smart-color LCD
Keep tabs on your performance and speed easily with the help of our illuminated, smart-color LCD.

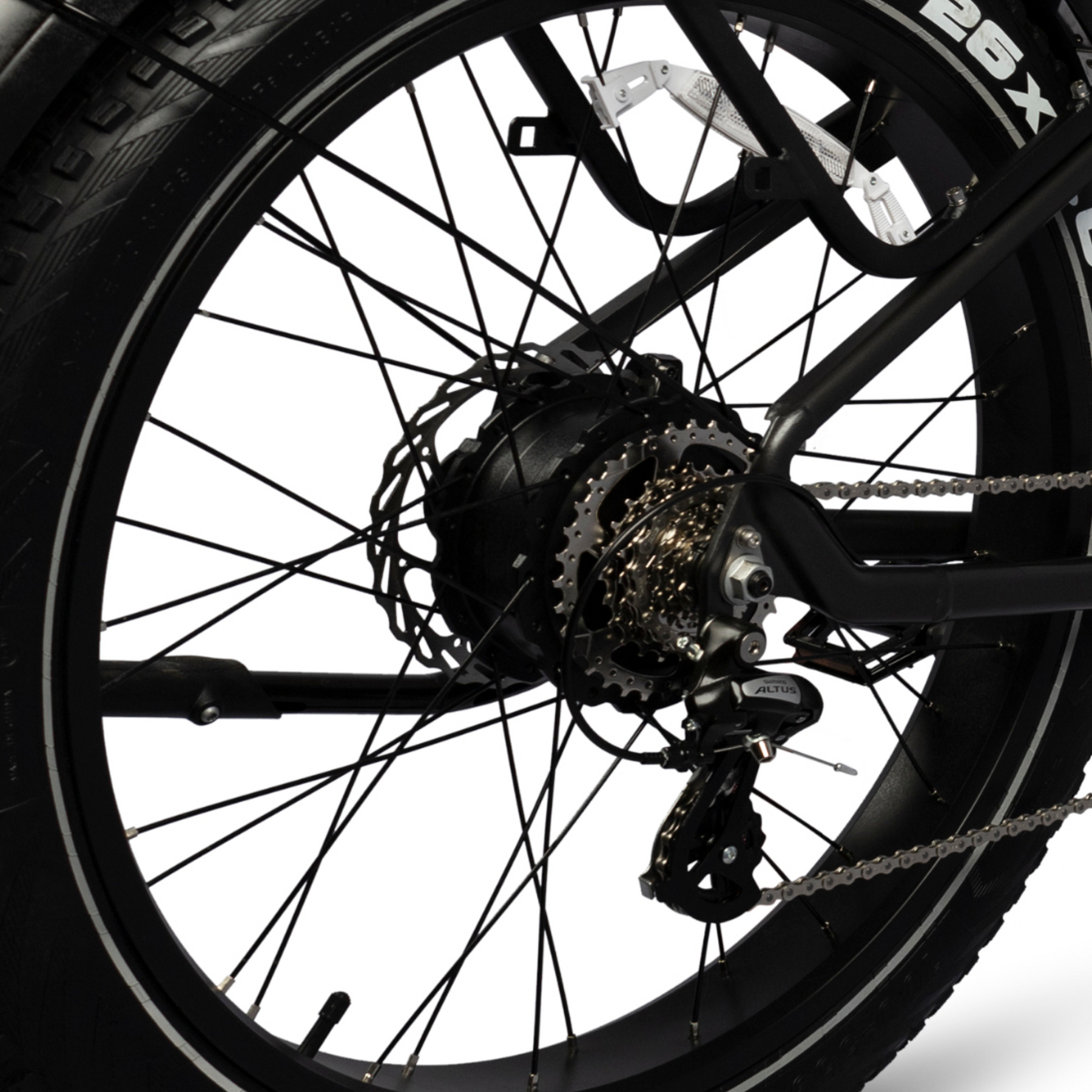

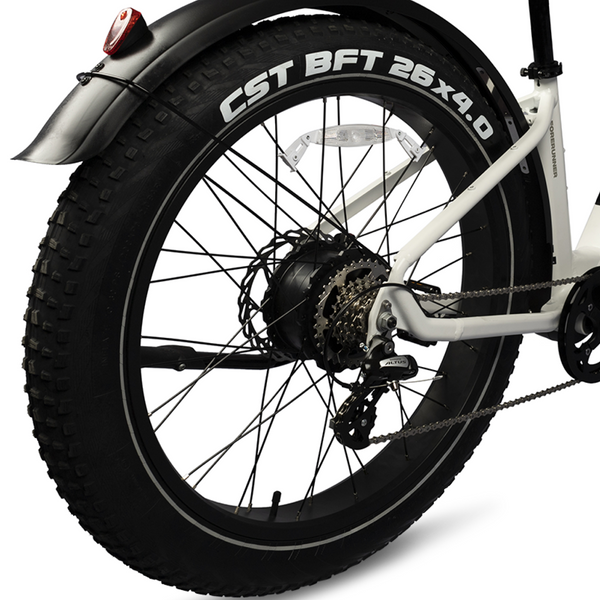

Rear Hub Motor
With the help of a 750W motor, you can consistently reach and sustain speeds of up to 28mph.
Standing over and pedaling with this frame will be comfortable for you.
Standing over and pedaling with this frame will be comfortable for you.
Standing over and pedaling with this frame will be comfortable for you.
You will not be able to stand over and pedal this frame comfortably.
Specifications
For Forerunner High-Step
Motor Power (W)
750 W 75N.M Torque
Battery
65+ Mi
696 wH Battery
696 wH Battery
Charging Time (Hr)
6 Hrs
Top Speed
28 MPH With Pedaling - 20 MPH With Throttle Only
Sensor
Cadence Sensor
Brake
Aluminum alloy levers with motor cutoff switch
Hydraulic Calipers
180 mm front and rear
Metallic
Hydraulic Calipers
180 mm front and rear
Metallic
Security
Set a 4 digit passcode that temporarily distables pedal assist.
Bindable key-card that unlocks your E-Bike.
A premium feature that notifies riders when a potential theft is in progress.
Bindable key-card that unlocks your E-Bike.
A premium feature that notifies riders when a potential theft is in progress.
Range
Battery (wH)
696 wH Battery
Charging Time
6 Hrs
Top Speed
28+ MPH
Charger
ST 48V 2Amp
Charging Time
6 Hrs
Motor Power (W)
750 W 75N.M Torque
Controller (V, W)
48V 750W 18A
Throttle Style
Half twist throttle
Display Type
Horizontal LCD Smart Color Display
Pedal Assist
6 Levels
USB Ports
YES
Wiring
Water resistant connectors and wiring harness
Components

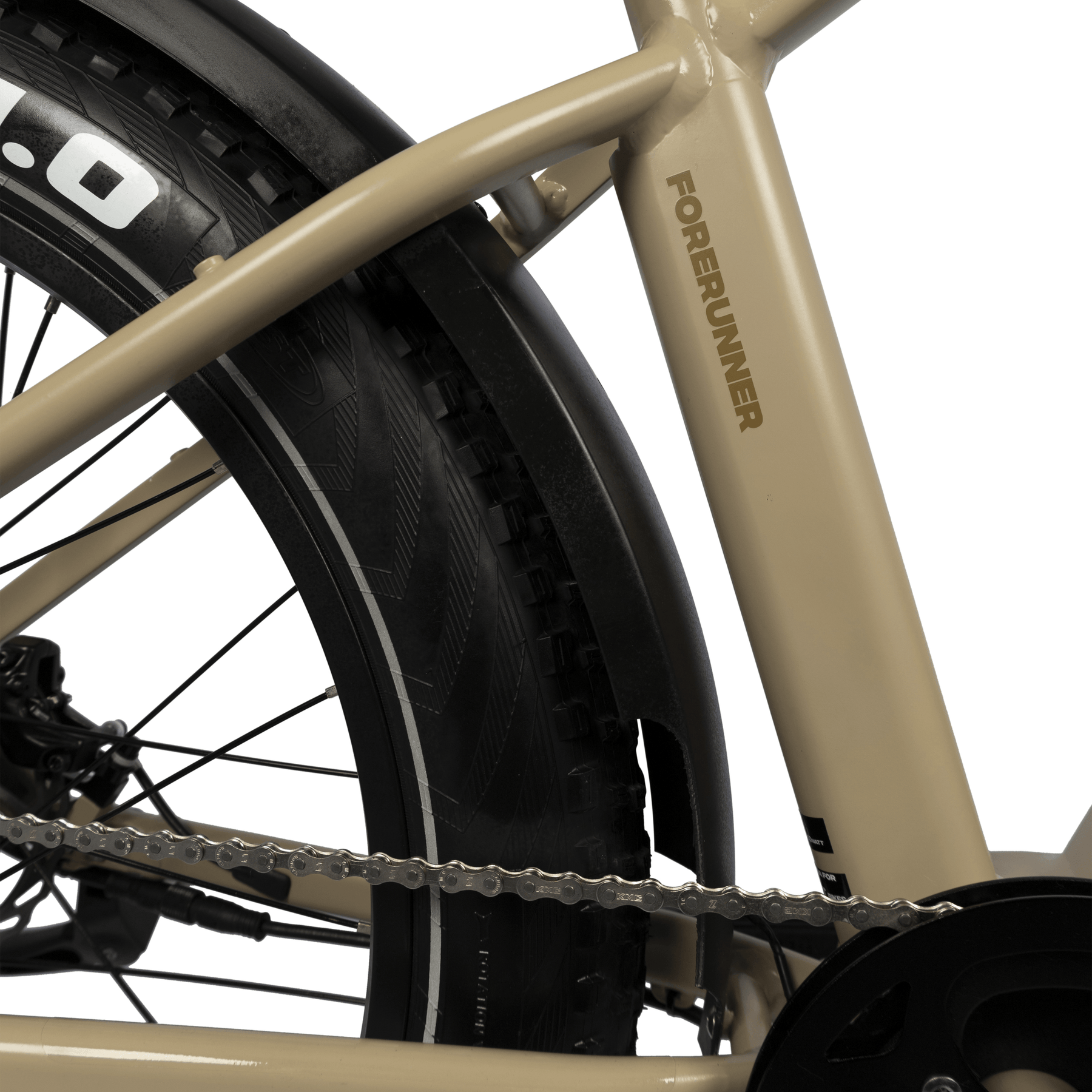

Frame
6061 Aluminum
Fork
Aluminum Fork for 26'' Tire
Handlebar
6061 Alloy Handlebar
Stem
90 mm length, 0 - 90º rise
Grips
Double Density Rubber Ergo Grips
Bell
Xinxing Integrated Bell
Rims
26'' 36 Hole
Tire Hub
KT Loose Ball 12G, 36H, 145L/QR154L
Tire Spokes
12 Gauge, Stainless Steel

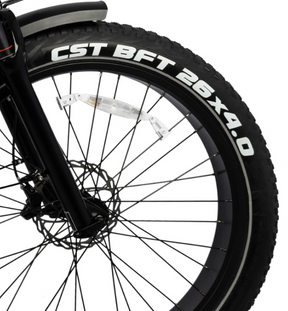

Tires
26'' x 4'' Puncture Resistant Tire
Fenders
Full coverage front and rear fenders with hardware included
Brake Levers
Aluminum alloy levers with motor cutoff switch
Brake Calipers
Hydraulic Calipers
Brake Rotors
180 mm front and rear
Brake Pad Materials
Metallic
Crank Set
42T, 170 mm crank length, dual-sided aluminum chainring guard
Freewheel
7 Speed Freewheel 11-34T
Chain
KMC Z7
Gearing
1 x 7 Speed
Shifter
7 Speed Shimano Right Shift Lever
Derailleur
7 Speed Shimano Altus
Saddle
Velo Plush Bicycle Seat
Seatpost Dimensions
31.6 mm x 350mm
Seatpost Clamp
Quick Release
Pedals
112 mm x 100 mm boron steel axel, Standard 9/16″ thread with reflectors
Kickstand
Heavy-duty aluminum with wide plastic foot
Front Light
Waterproof front LED headlight
Tail Light
Rear integrated lights
Rear Rack
NO
Sensor
Cadence Sensor

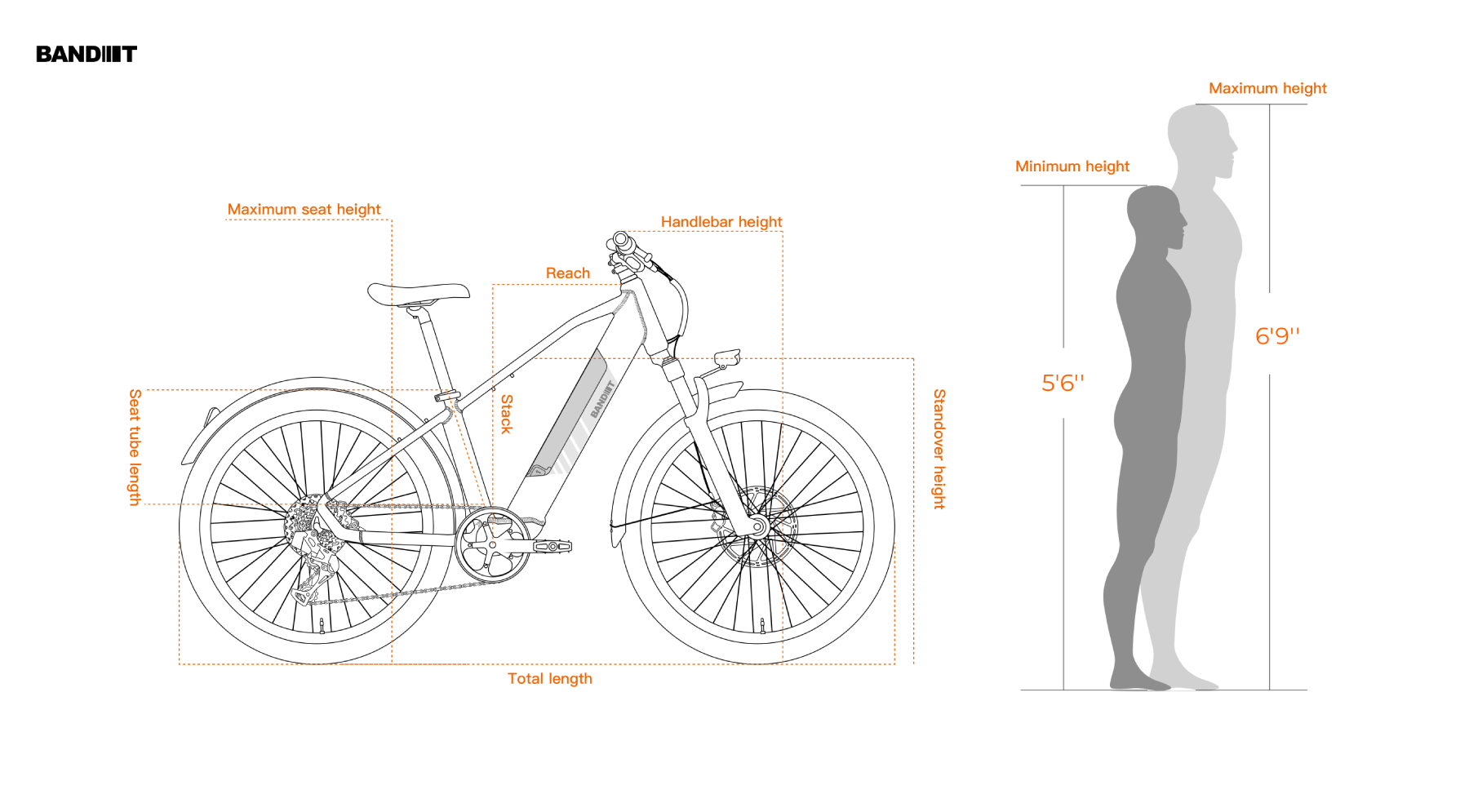

Geometry
Weight (KG)
71 lb
Max Seat Height (In)
35 in
Reach (In)
14 in
Seat Tube (In)
14 in
Frame Height (In)
17 in
Standover Height (In)
31 in
Handlebar Height (In)
46.5 in
Total Length (In)
63 in
Monitor Functions
Bluetooth App Connection
Adjust E-Bike settings and ride mode. Access premium features with Bandit Plus.
Usage Statistics
Track your average speed, distance, ride time and more with the app.

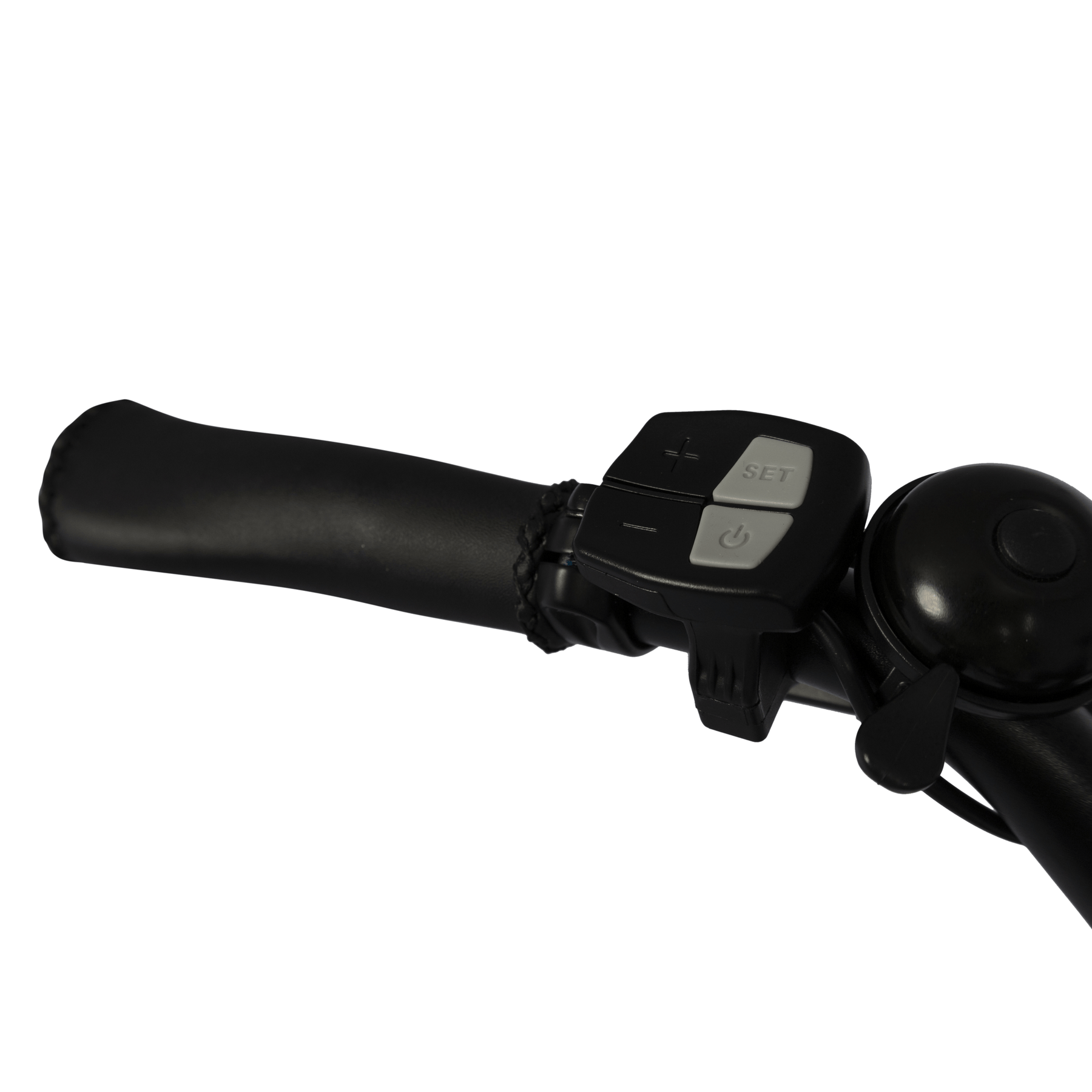

Monitor e-Bike Control
Control PAS level, riding mode, and your headlight.
Monitor e-Bike Settings
Configure your units, brightness, and security measures.
Security Features
Password Protection
4 digit passcode that disables pedal assist until inputted by the rider.
NFC Tag
Bindable key-card that unlocks your E-Bike.
Theft Detection
A premium feature that notifies riders when a potential theft is in progress.
750W Gear Hub Motor
Get ready for an exhilarating riding experience, with lightning-fast acceleration and smooth, responsive handling. Navigate even the most rugged terrains with ease.

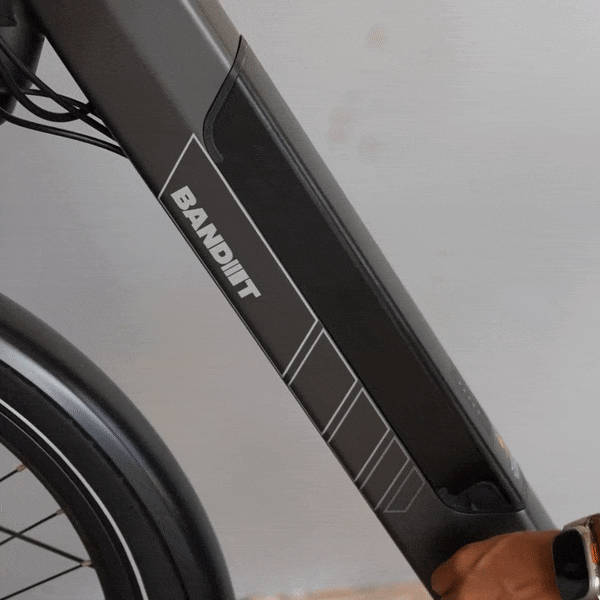

48V 14.5AH Lithium Ion battery
Our 696Wh high-capacity integrated battery, enables a range of up to 70 miles with pedal assist and 50 with just the throttle.
Hydraulic Brakes
Whether you're hitting the trails, commuting to work, or cruising around town, our brake delivers the stopping power you need when you need it most.

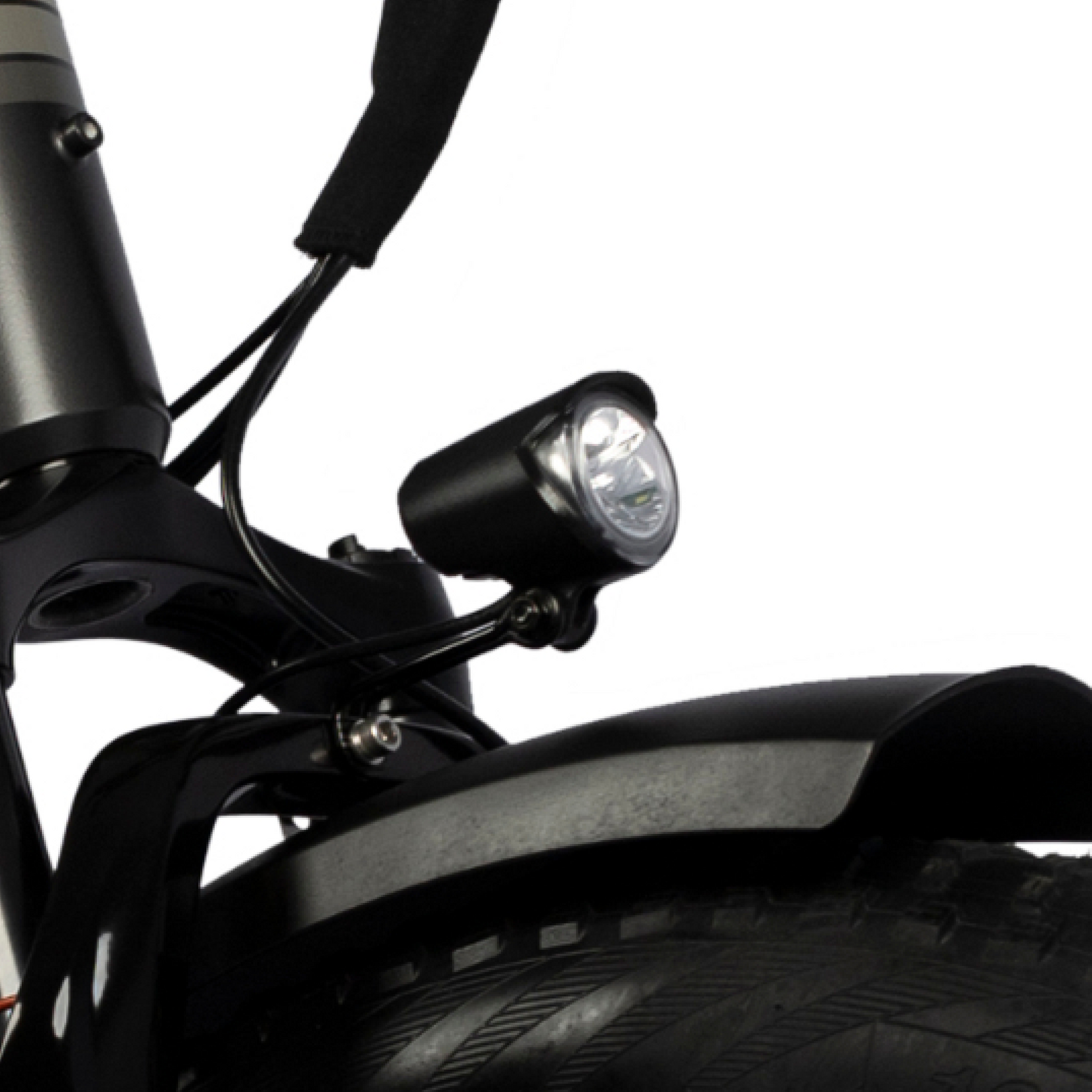

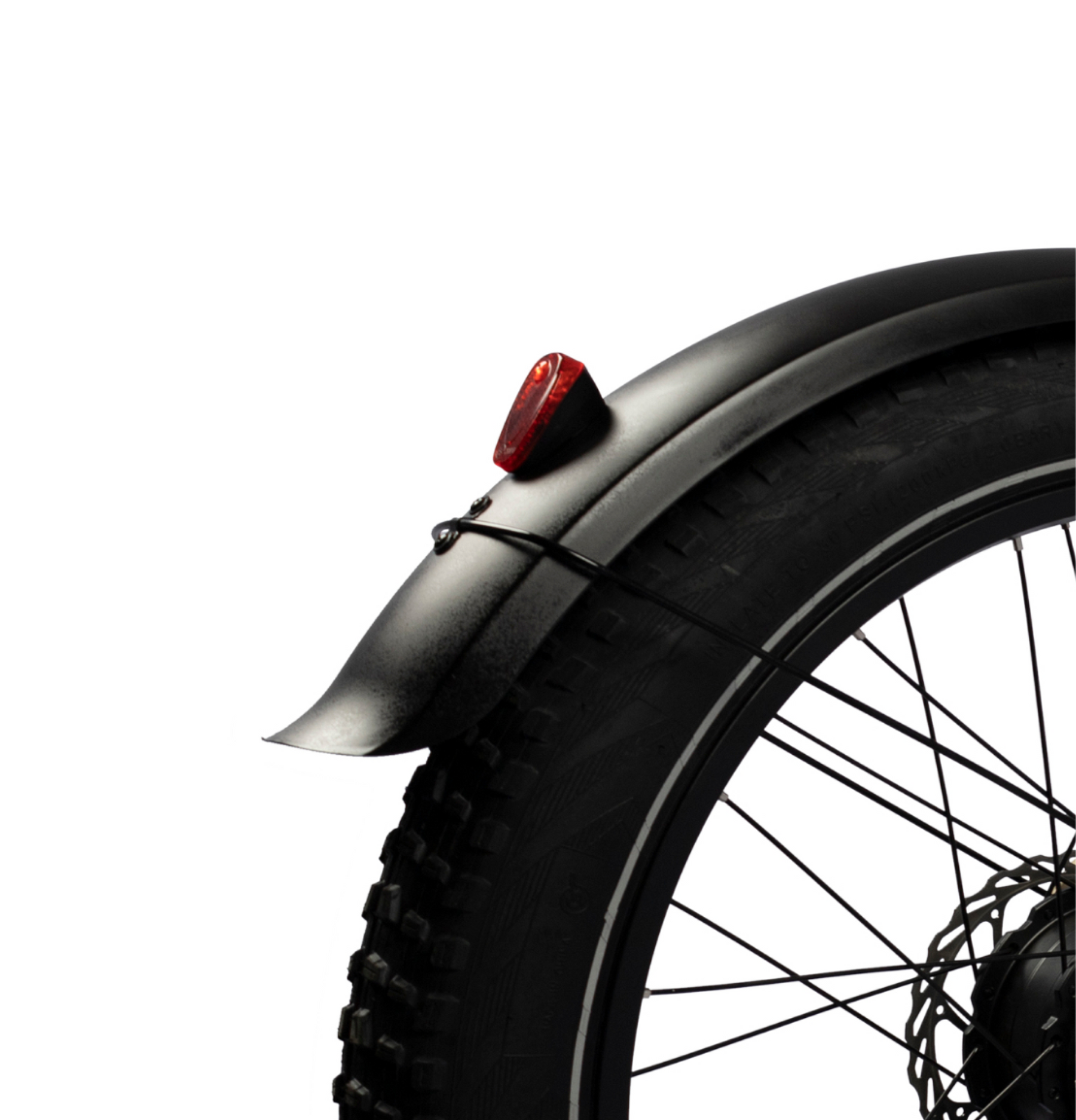

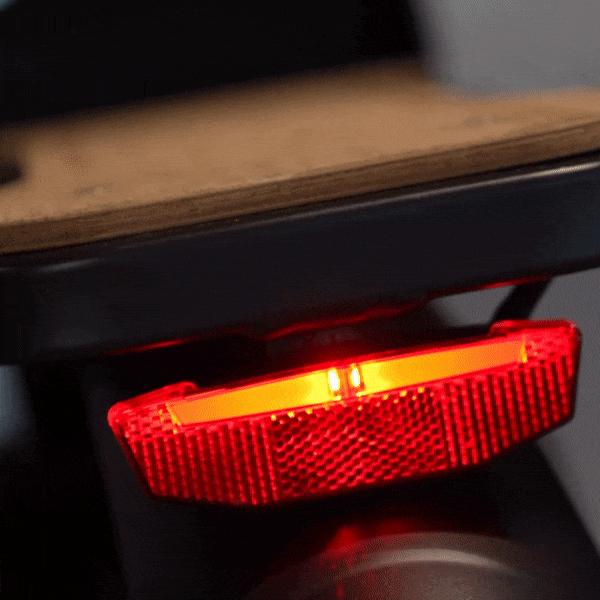

INTEGRATED LIGHTS
Illuminate your ride and ensure your safety with our Bright Front LED Light and Rear Brake Light.
Unlock with a tap
Bandit smart NFC tag allow you to unlock your bike with just a tap, offering unmatched convenience and security.
50 Point Inspection
To ensure that our E-Bikes are defect free, we inspect them
thoroughly before they leave the workshop.
All Terrain,
All Weather
All our E-Bikes come with puncture free tires, front or rear
suspension, and all weather capabilities.
Ride With Confidence
All Bandit frames were built in accordance with the guidelines
set by the U.S Consumer Product Safety Commission.
