X-Trail Lite

the X-Trail Lite is a quick, stable, and compact build that combines a sturdy frame with a powerful motor.

Color
Price
Sale price$1,399.00 Regular price$1,699.00
Save $300.00

750W Motor

60 mile range

28mph top speed

48V 14.5AH Battery

Pint Sized Dynamo.

Never judge a moped by its frame. With a motor that generates up to 750wH of power, puncture resistant fat tires, and a full set of suspension that lets it excel on most surfaces, the X-Trail Lite is a potent yet compact beast of an E-Bike. Hang on tight and have fun.

Versatility

The X-Trail Lite is designed to excel in different environments. Built with 4' fat tires, a lightweight frame, and fenders, it can handle any situation.

All-Purpose Moped

Featuring a plush seat and full suspension for your adventures, the X-Trail Lite allows you to explore and travel in comfort.

Rear Hub Motor

Content text

Smart-color LCD

Content text

Hydraulic brakes

Content text

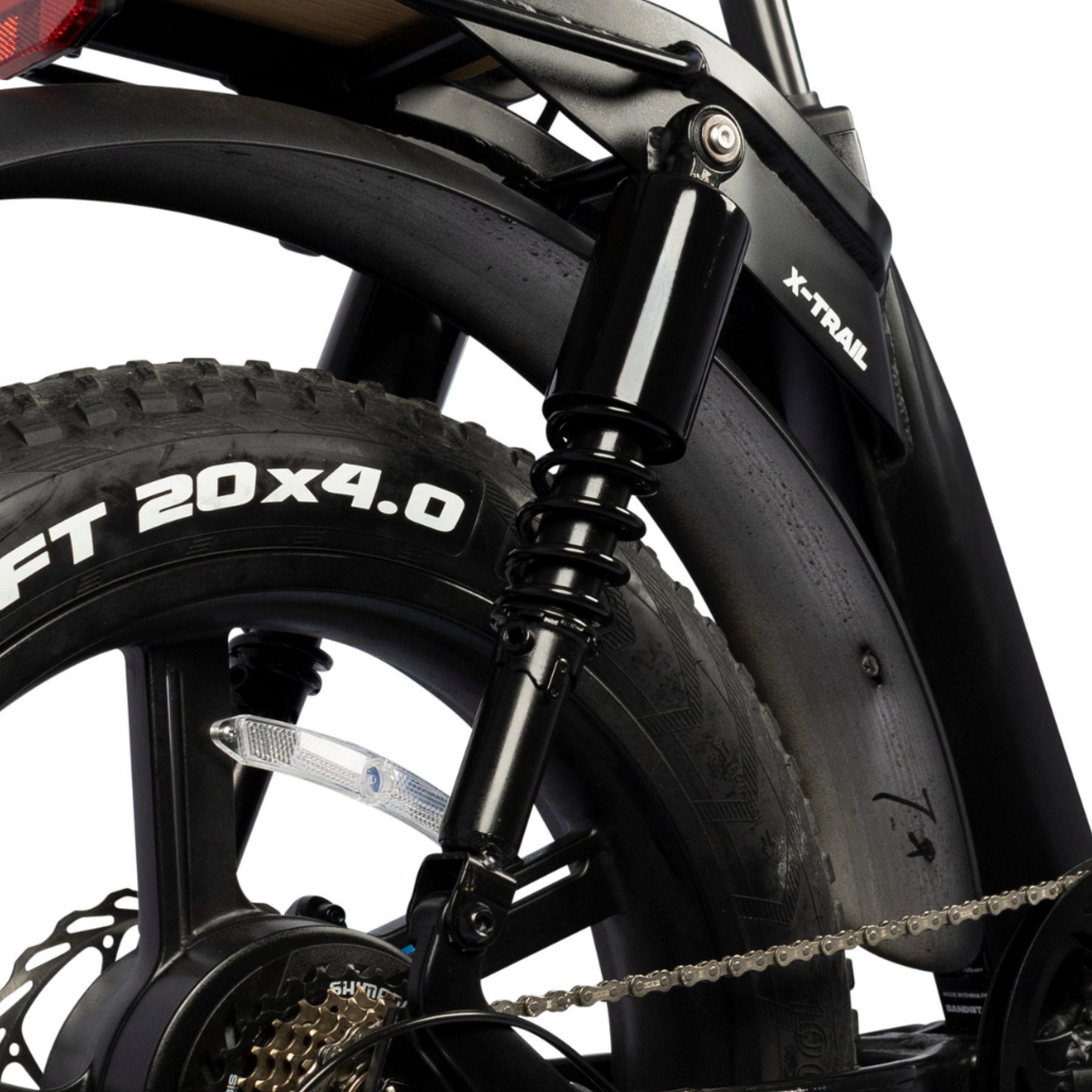

Full Suspension

Content text

Specifications

For X-Trail Lite

Motor Power (W)

750 W 75N.M Torque

Battery

60+ Mi

696 wH Battery

Charging Time (Hr)

6 Hrs

Top Speed

28 MPH With Pedaling - 20 MPH With Throttle Only

Sensor

Cadence Sensor

Brake

Aluminum alloy levers with motor cutoff switch

Hydraulic Calipers

180 mm front and rear

Metallic

Security

Set a 4 digit passcode that temporarily distables pedal assist.

Bindable key-card that unlocks your E-Bike.

A premium feature that notifies riders when a potential theft is in progress.

Range

Battery (wH)

696 wH Battery

Charging Time

6 Hrs

Top Speed

28+ MPH

Charger

ST 48V 2Amp

Charging Time

6 Hrs

Motor Power (W)

750 W 75N.M Torque

Controller (V, W)

48V 750W 20A

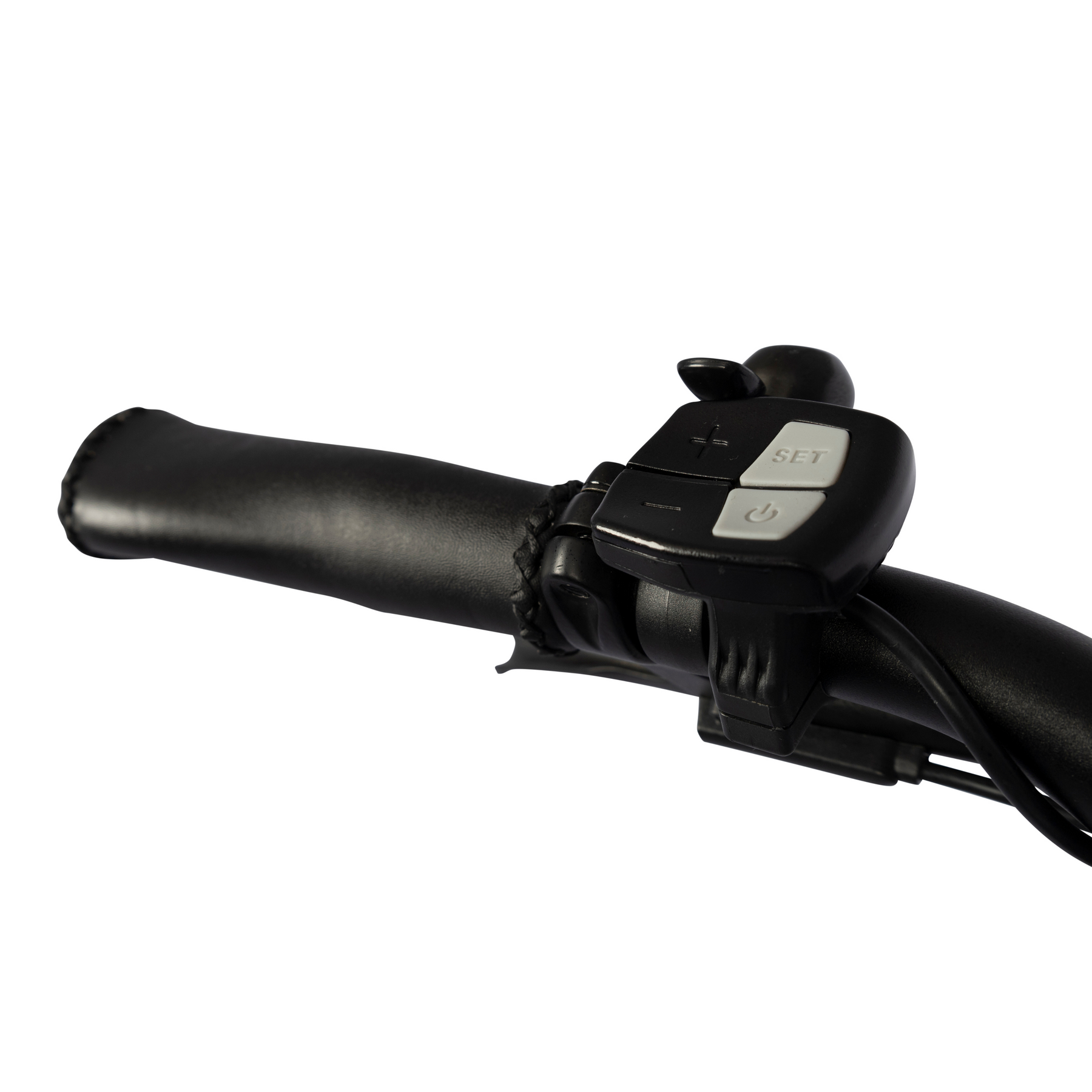

Throttle Style

Half twist throttle

Display Type

Horizontal LCD Smart Color Display

Pedal Assist

6 Levels

USB Ports

YES

Wiring

Water resistant connectors and wiring harness

Components

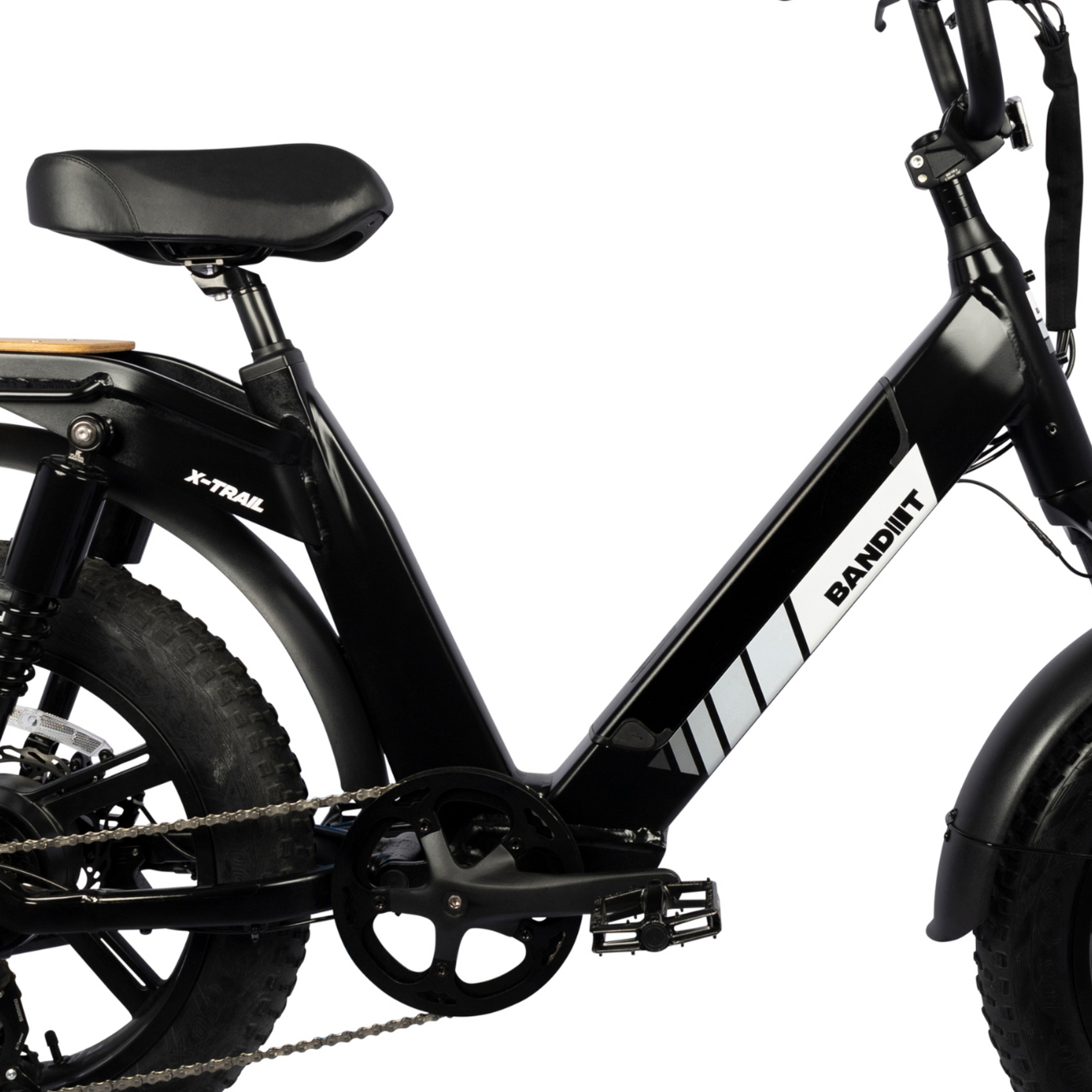

Frame

6061 Aluminum

Fork

Steel Fork with 80mm travel for 20'' Tire

Handlebar

6061 Alloy Handlebar

Stem

50 mm + 30º

Grips

Velo Rubber Ergo Grips

Bell

Zoom Integrated Bell

Rims

Bandit Bikes 12G 5 Spoke Rims

Tire Hub

Bandit Bikes Loose Ball 12G, 36H Rear Tire Hub

Tire Spokes

None

Tires

20'' x 4'' Puncture Resistant Tire

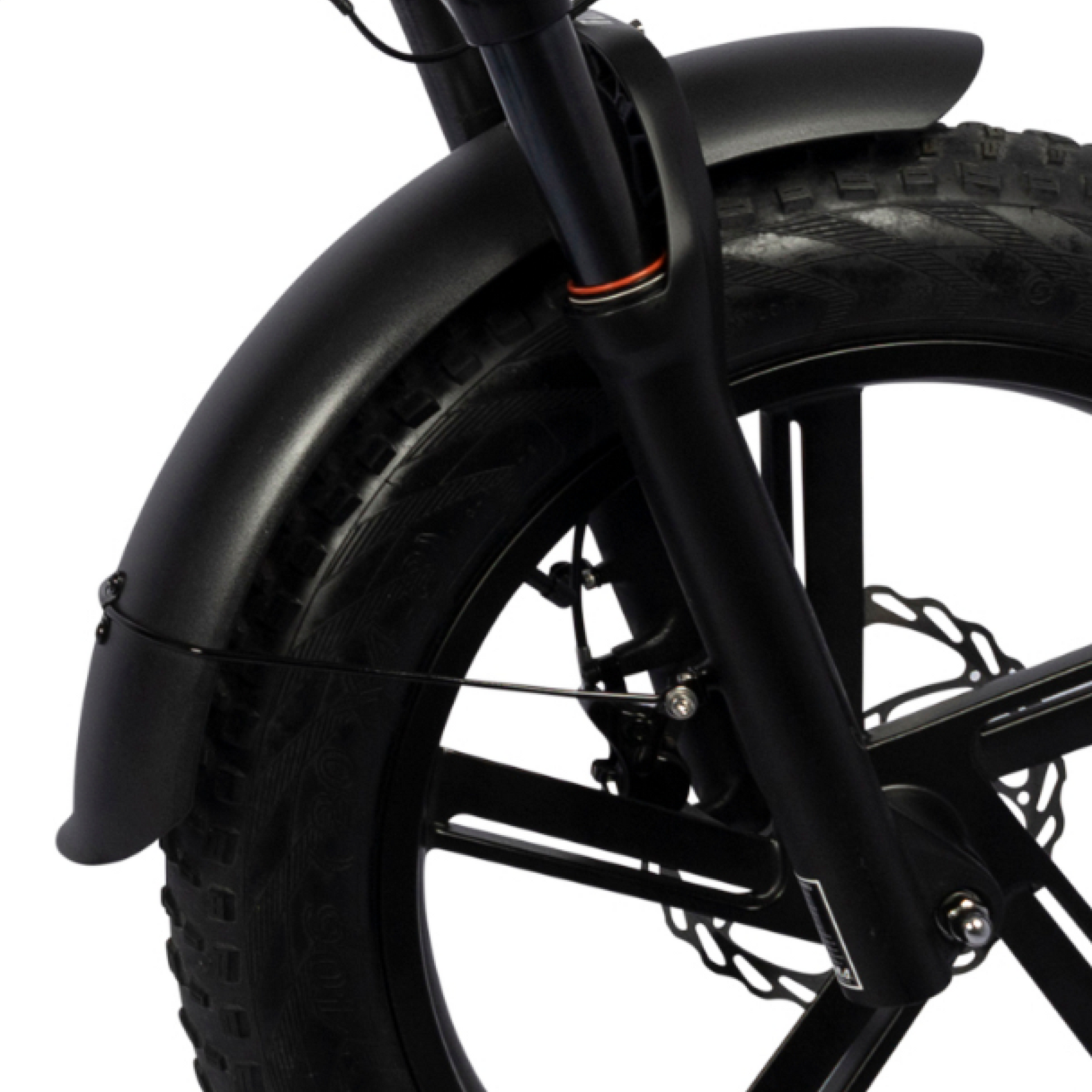

Fenders

Full coverage front and rear fenders with hardware included

Brake Levers

Aluminum alloy levers with motor cutoff switch

Brake Calipers

Hydraulic Calipers

Brake Rotors

180 mm front and rear

Brake Pad Materials

Metallic

Crank Set

48T, 165mm crank length; square-taper; dual-sided aluminium chainring guard

Freewheel

DNP 8 Speed Freewheel 11-32T

Chain

KMC Z7

Gearing

1 x 7-speed

Shifter

7 Speed Shimano Right Shift Lever

Derailleur

7 Speed Shimano Tourney

Saddle

Large Plush Bicycle Seat

Seatpost Dimensions

31.6 x 400mm

Seatpost Clamp

Bolt on

Pedals

111 mm x 105 mm boron steel axel, Standard 9/16″ thread with reflectors

Kickstand

Heavy-duty aluminum with wide plastic foot

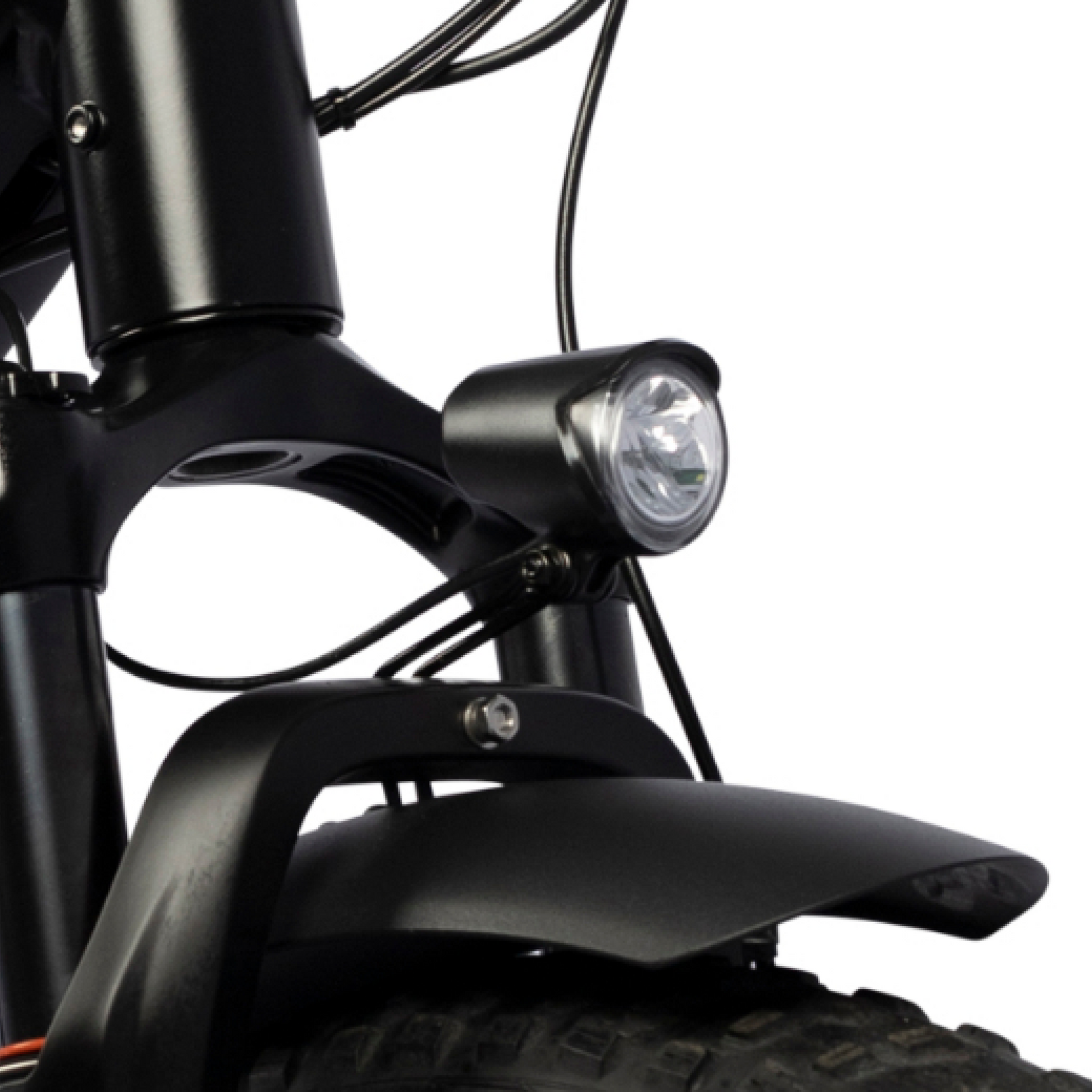

Front Light

Waterproof front LED headlight

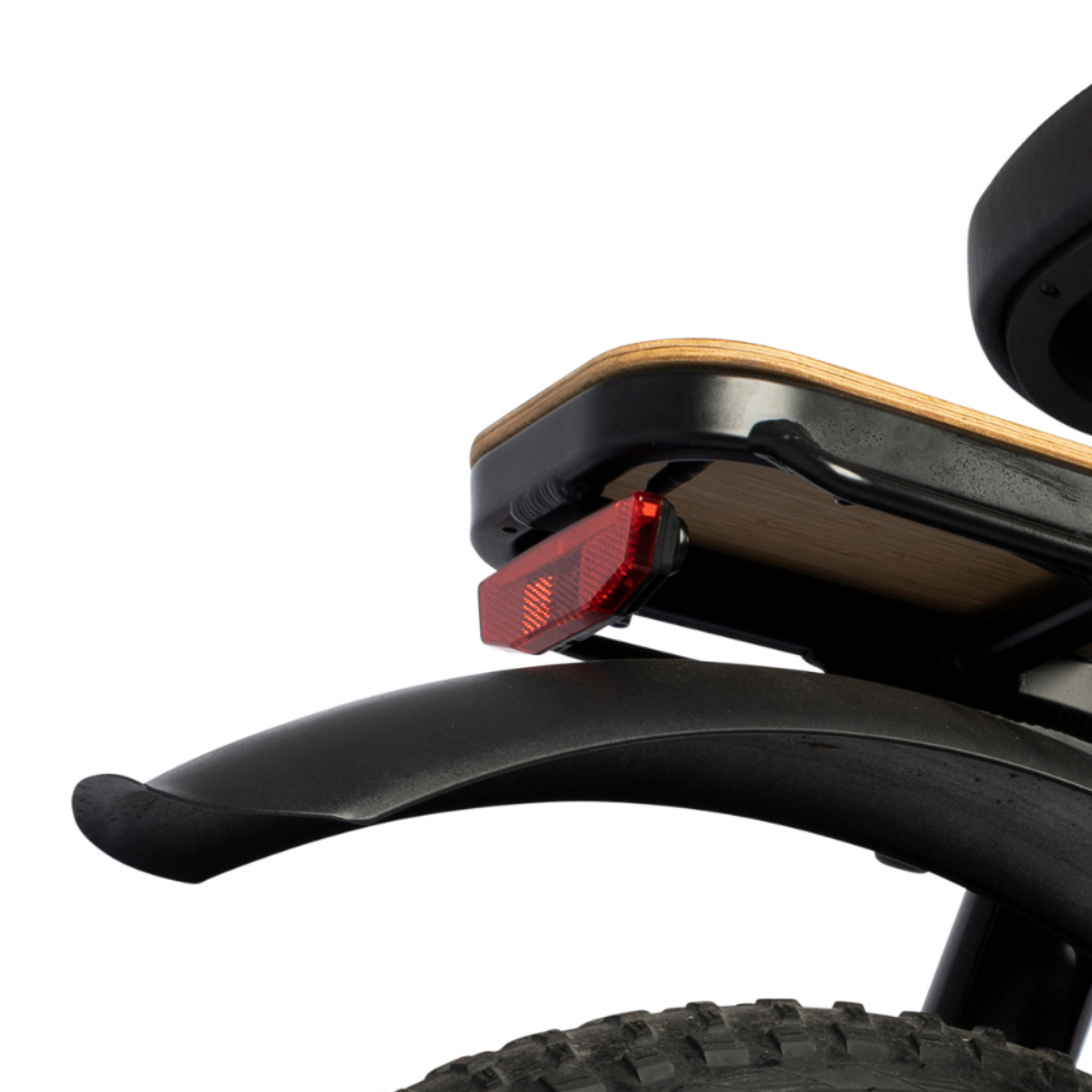

Tail Light

Rear integrated lights

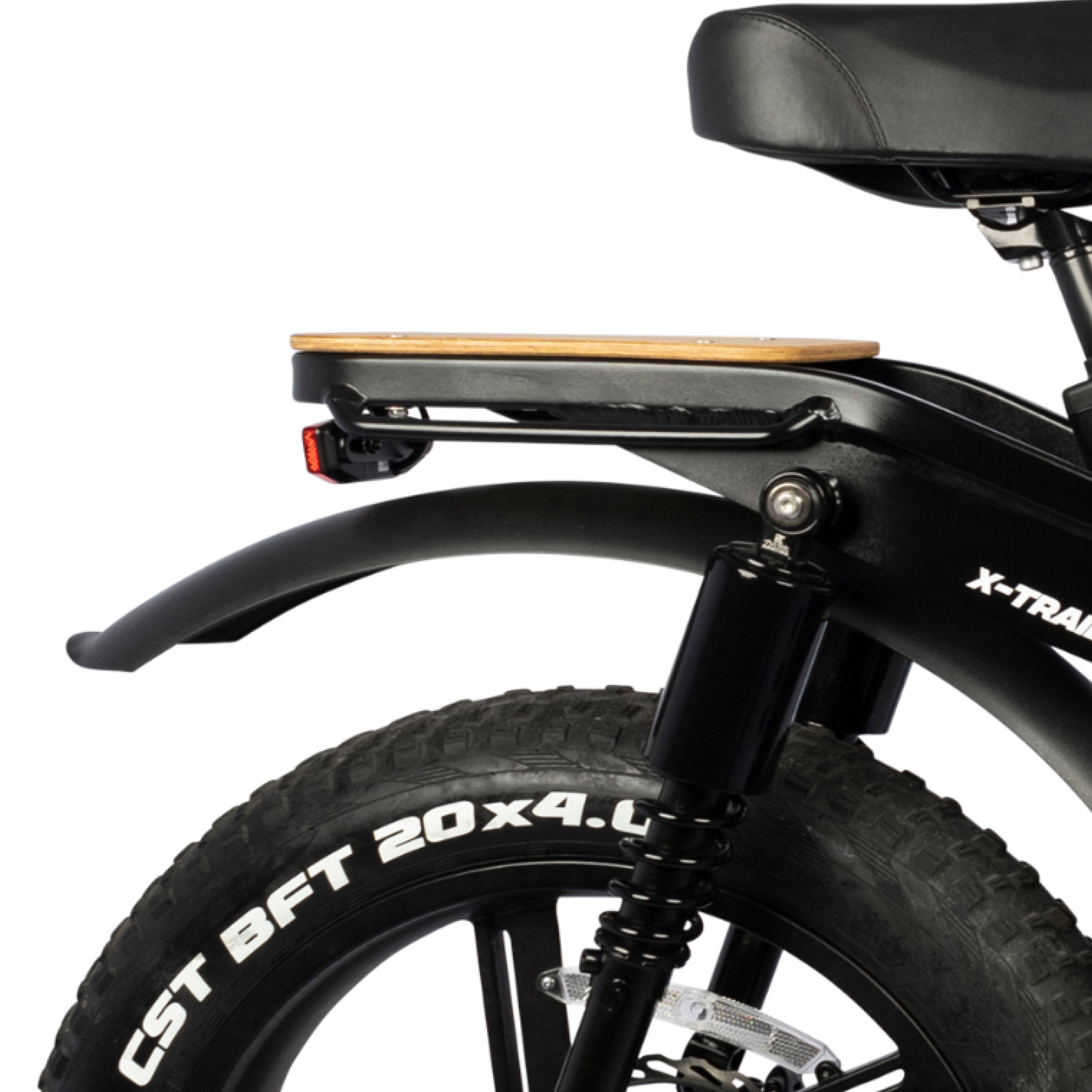

Rear Rack

YES

Sensor

Cadence Sensor

Geometry

Weight (KG)

78 lb

Max Seat Height (In)

34 in

Reach (In)

13 in

Seat Tube (In)

16 in

Frame Height (In)

18 in

Standover Height (In)

15.2 in

Handlebar Height (In)

45.7 in

Total Length (In)

58 in

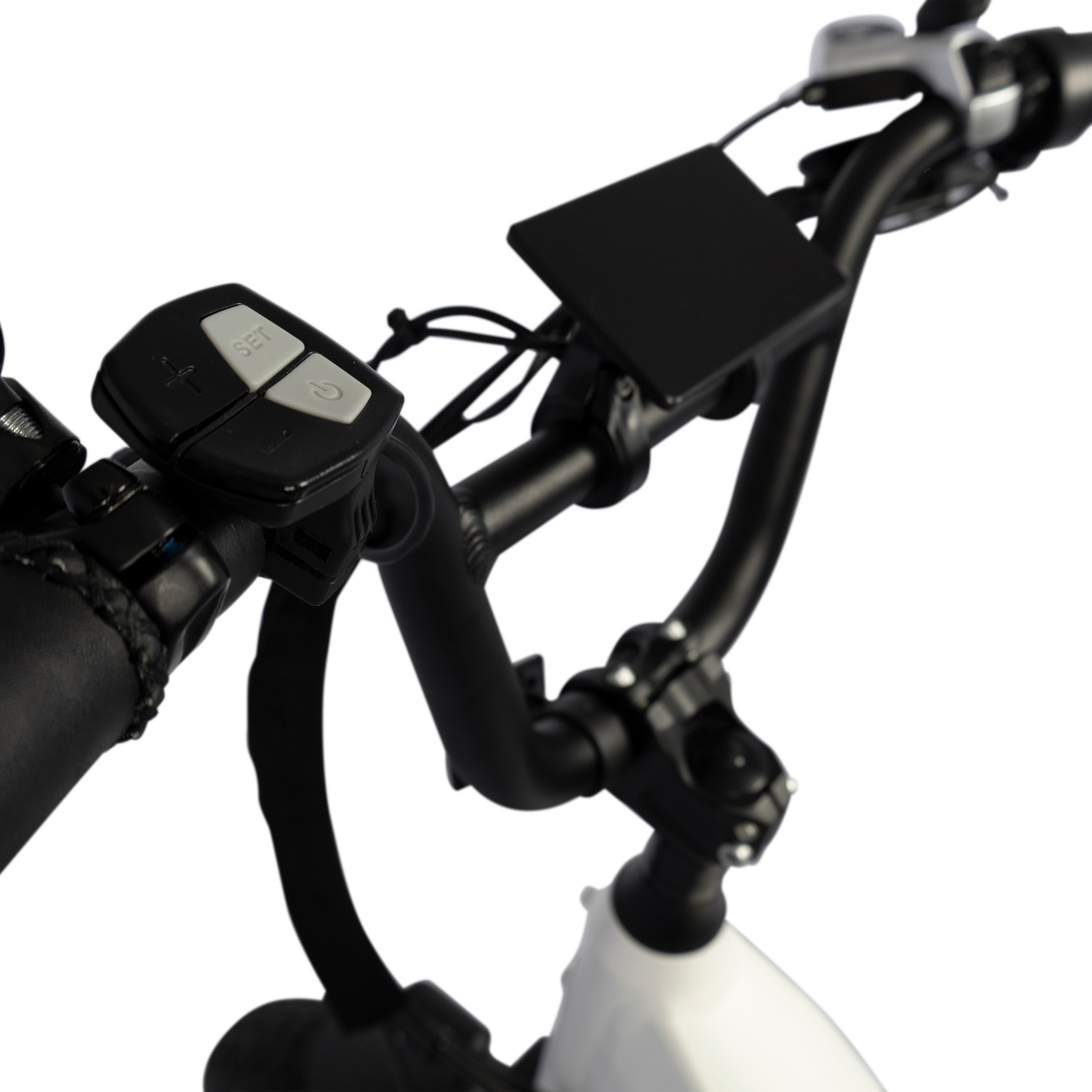

Monitor Functions

Bluetooth App Connection

Adjust E-Bike settings and ride mode. Access premium features with Bandit Plus.

Usage Statistics

Track your average speed, distance, ride time and more with the app.

Monitor e-Bike Control

Control PAS level, riding mode, and your headlight.

Monitor e-Bike Settings

Configure your units, brightness, and security measures.

Security Features

Password Protection

9 digit passcode that disables pedal assist until inputted by the rider.

NFC Tag

Bindable key-card that unlocks your E-Bike.

Theft Detection

A premium feature that notifies riders when a potential theft is in progress.

750W Gear Hub Motor

Our motor is engineered to provide an exhilarating riding experience, with lightning-fast acceleration and smooth, responsive handling. The 750W output gives you the power to navigate even the most rugged terrains with ease.

48V 14.5AH Lithium Ion battery

Our 750W motor, combined with our 696Wh high-capacity integrated battery, enables a range of up to 70 miles with pedal assist and 50 with just the throttle.

Hydraulic Disc Brake

Our hydraulic disc brake offers reliable and consistent performance in even the most extreme conditions. Whether you're hitting the trails, commuting to work, or cruising around town, our brake delivers the stopping power you need when you need it most.

INTEGRATED LIGHTS

Illuminate your ride and ensure your safety with our state-of-the-art Bright Front LED Light and Rear Brake Light combo designed specifically for BANDIT.

Unlock with a tap

Gone are the days of fumbling for keys or remembering passcodes. Bandit smart NFC tag allow you to unlock your bike with just a tap, offering unmatched convenience and security.

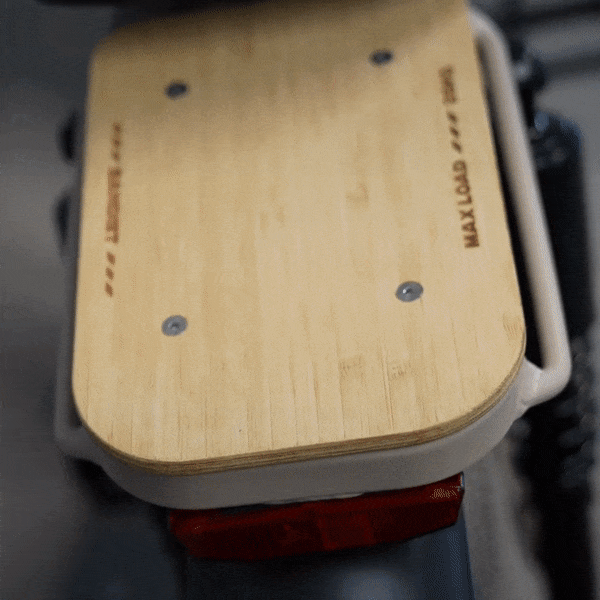

ergonomic design

Premium wide saddle and built-in rear rack. The seamless integration of functionality and elegance is a testament to our commitment to impeccable craftsmanship.

14-DAY FREE RETURNS

Feel free to return the bike if you don't like it

Quality
performance
Safety

50 Point Inspection

To ensure that our E-Bikes are defect free, we inspect them
thoroughly before they leave the workshop.

All Terrain,
All Weather

All our E-Bikes come with puncture free tires, front or rear
suspension, and all weather capabilities.

Ride with confidence

All Bandit frames were built in accordance with the guidelines
set by the U.S Consumer Product Safety Commission.

Weight: 77 lbs Reach: 21.6’’ Stack: 21.7’’ Maximum seat height: 41.7’’  Seat tube length: 16’’ Total length: 58’’ Handlebar height: 45.7’’ Standover height: 15.2’’’ Minimum height: 4’11’’ Maximum height: 6’4’’Maximum Load 440lbs
