All terrain, all purpose, dual suspension E-Bike. Engineered for comfort and versatility.

Motor 750W
Mile Range 70+
Top Speed 28 mph
Battery 48V 14.5AH

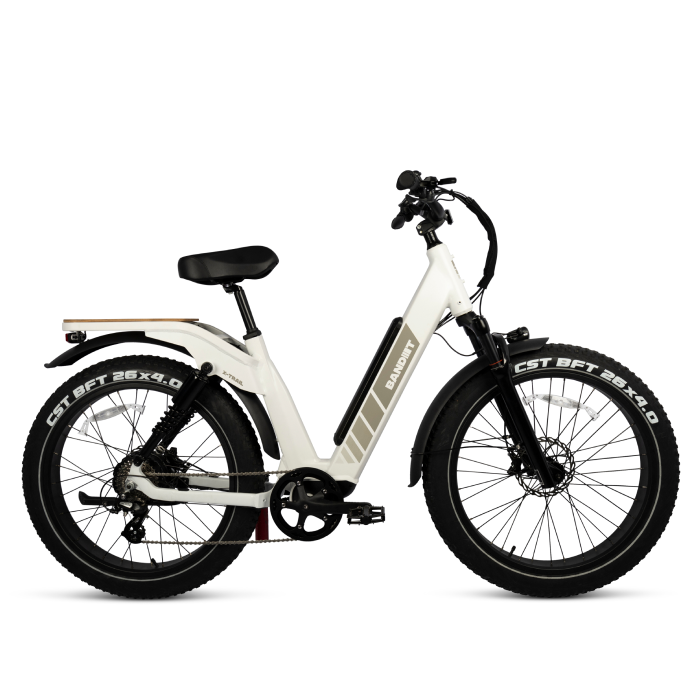

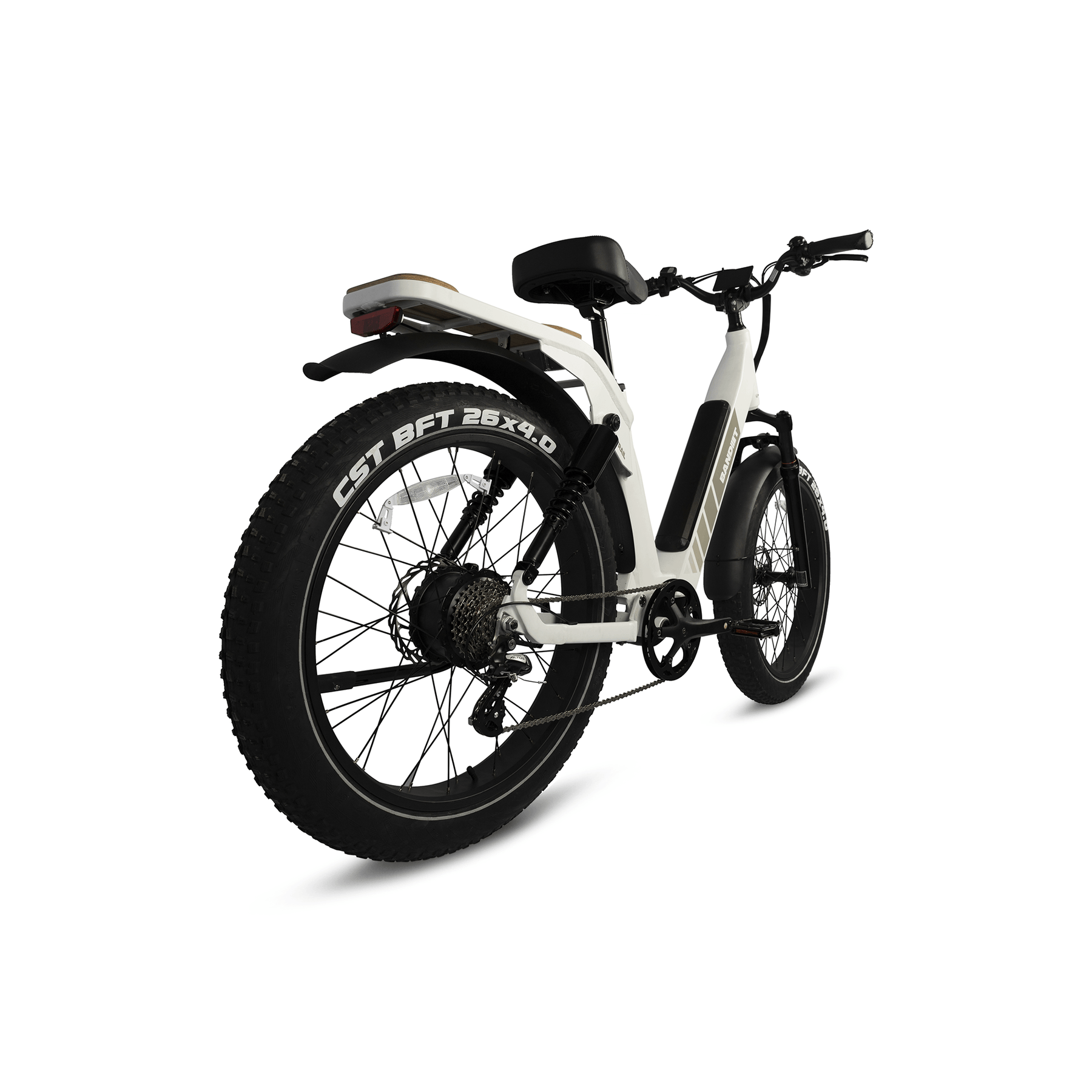

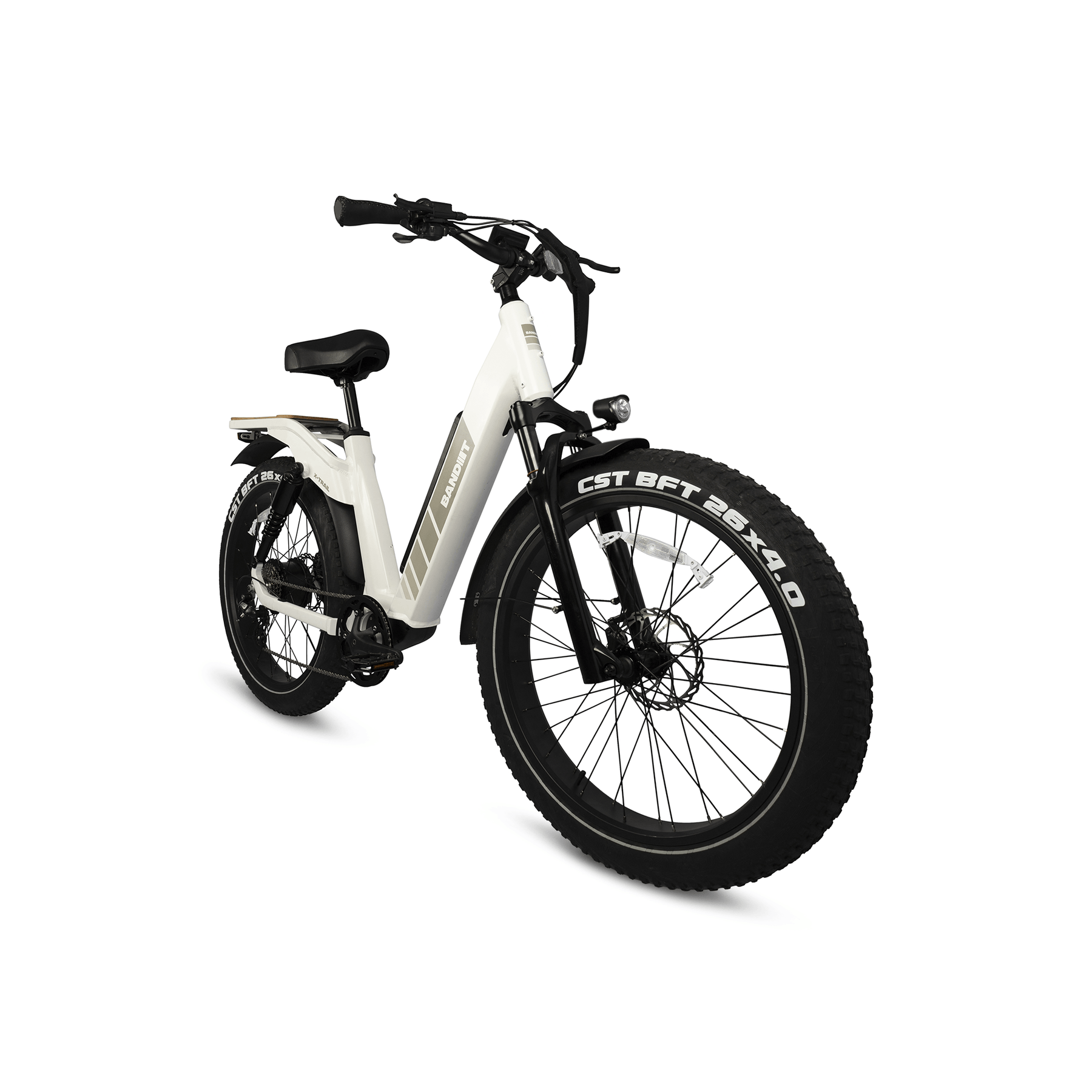

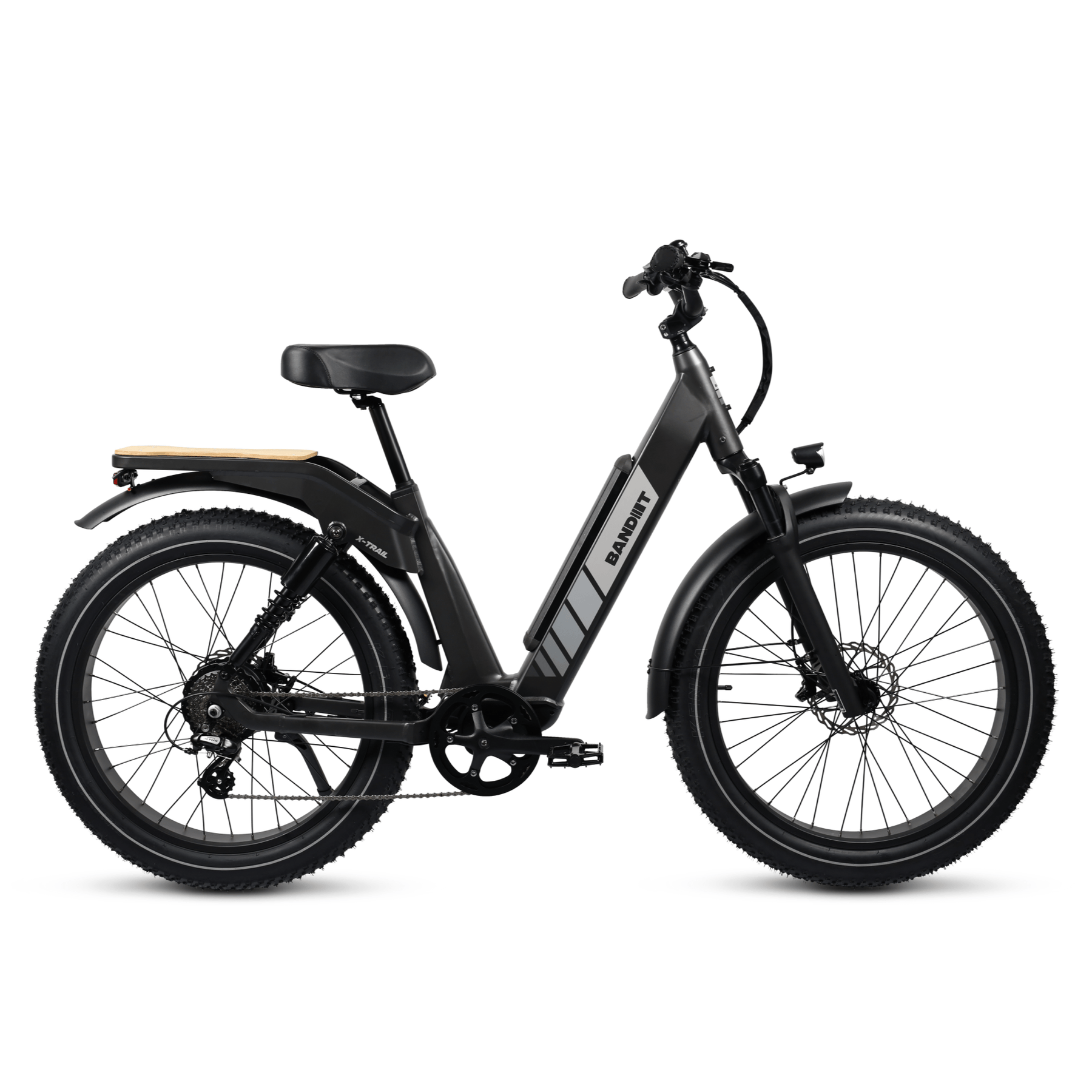

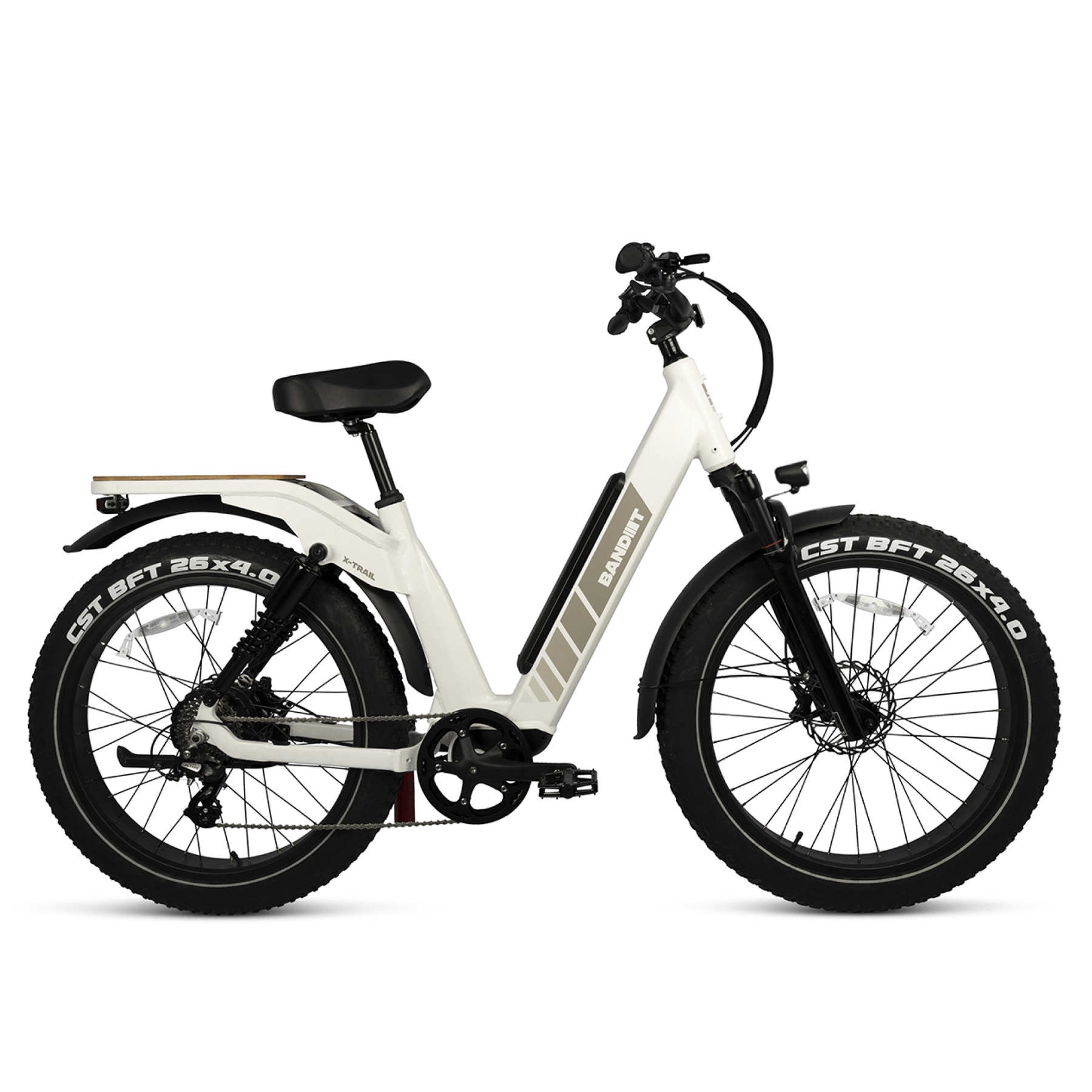

X-Trail Urban Step-Thru

ColorGrey
$2,199.00 $1,699.00
Pickup available at Santa Monica Showroom Usually ready in 2-4 days

X-Trail Urban Step-Thru

Grey

Santa Monica Showroom

Pickup available, usually ready in 2-4 days

930c Broadway
Santa Monica CA 90401
United States

+14242385506
14-Day Free Returns
Free Shipping
2-Year Warranty

All terrain, all purpose, dual suspension E-Bike. Engineered for comfort and versatility.

Motor 750W
Mile Range 70+
Top Speed 28 mph
Battery 48V 14.5AH

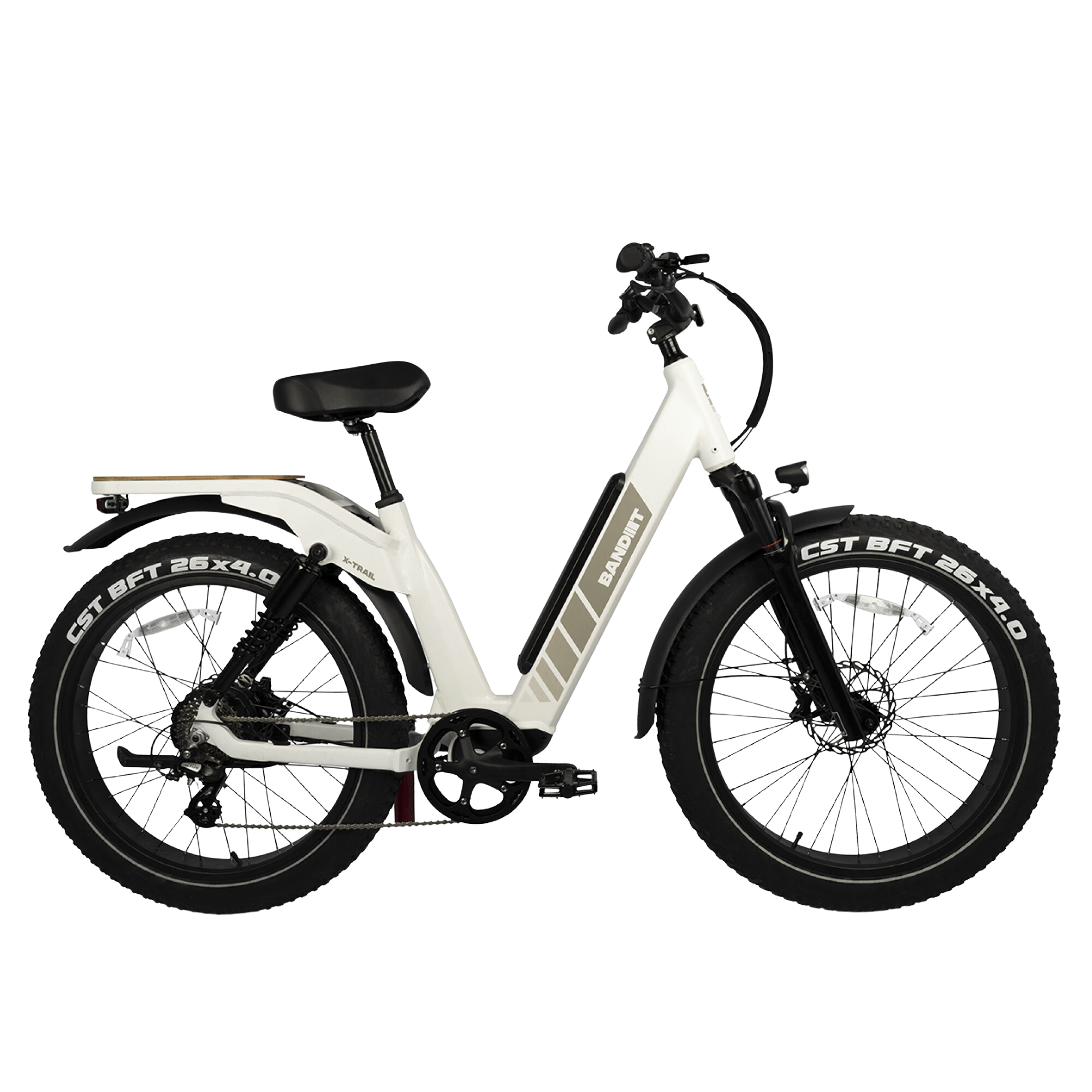

Structures & Designs

Full Suspension

Full Suspension

The Front and Rear suspension makes your every adventure smooth and comfortable.

1
750W Motor

750W Motor

The powerful 750W motor gives you the torque needed to conquer any terrain.

2

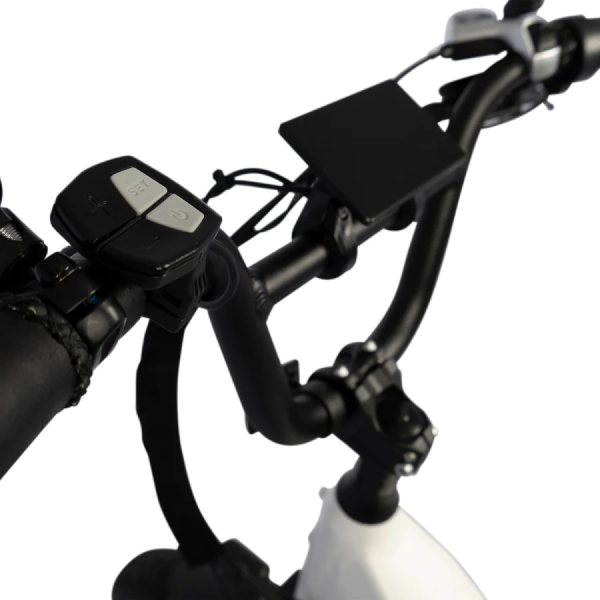

Smart LCD Screen

Smart LCD Screen

All Bandit E-Bike Monitors come with larger Smart Color LCD screens.

3
Hydraulic Brake

Hydraulic Brake

Hydraulic brake with 180mm rotor provides confident stopping power.

4

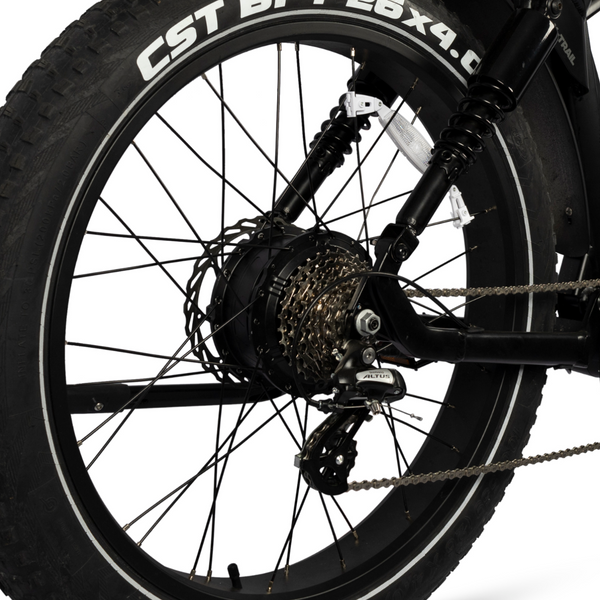

750W Gear Hub Motor

Our motor is engineered to provide an exhilarating riding experience, with lightning-fast acceleration and smooth, responsive handling. The 750W output gives you the power to navigate even the most rugged terrains with ease.

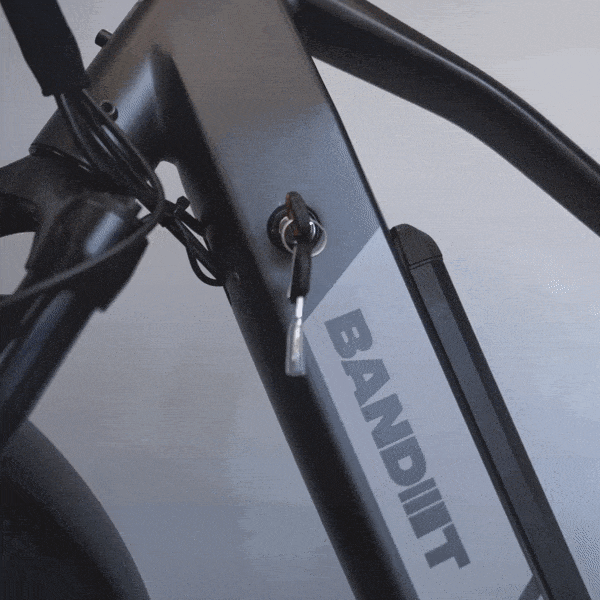

48V 15AH Lithium Ion Battery

Our 750W motor, combined with our 720Wh high-capacity semi-integrated battery, enables a range of up to 70 miles with pedal assist and 50 with just the throttle.

Hydraulic Disc Brake

Our hydraulic disc brake offers reliable and consistent performance in even the most extreme conditions. Whether you're hitting the trails, commuting to work, or cruising around town, our brake delivers the stopping power you need when you need it most.

Unlock with a Tap

Gone are the days of fumbling for keys or remembering passcodes. Bandit smart NFC tag allow you to unlock your bike with just a tap, offering unmatched convenience and security.

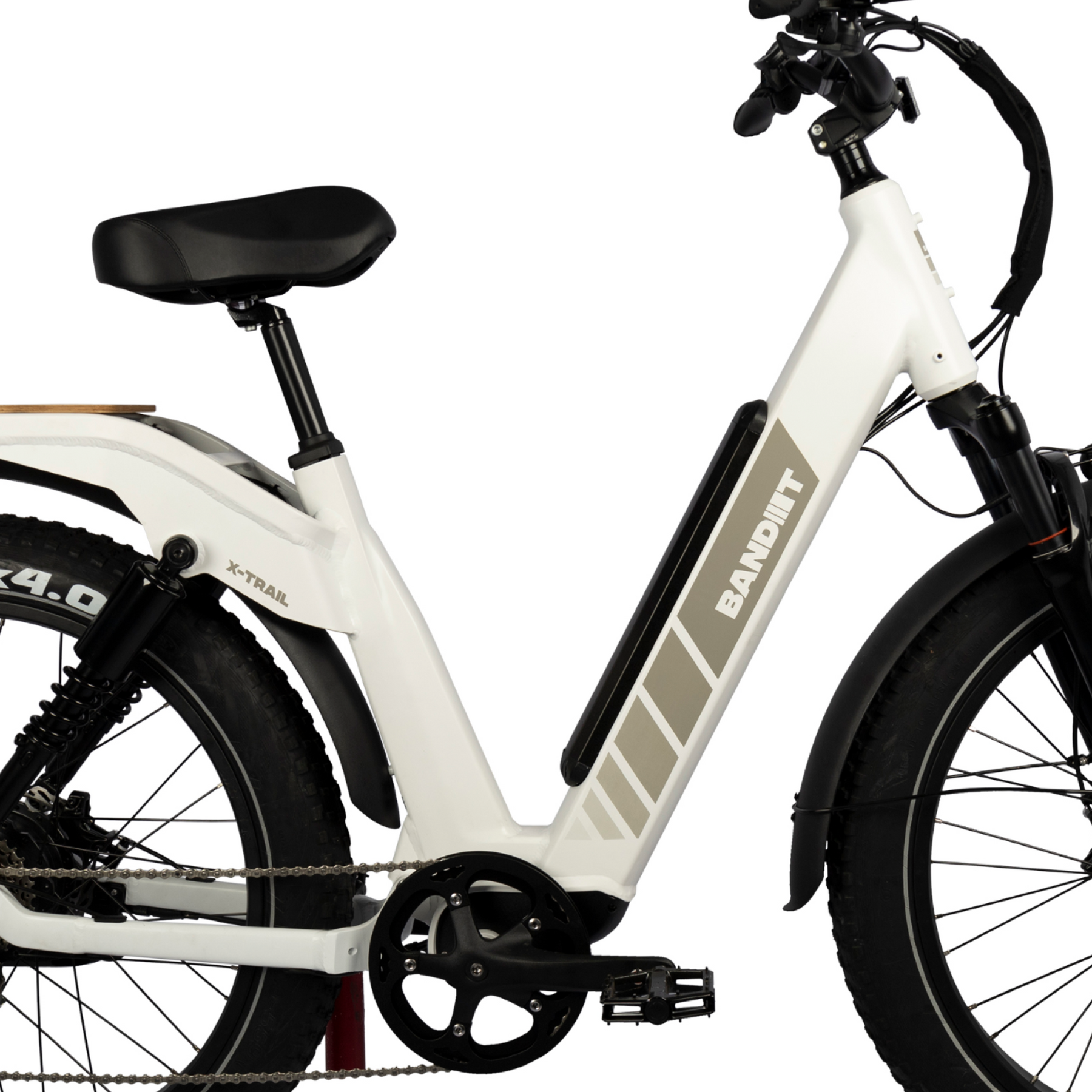

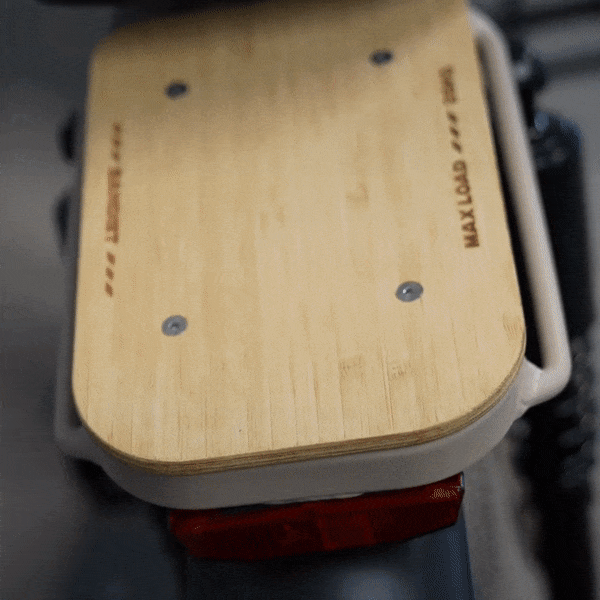

Ergonomic Design

Premium wide saddle and built-in rear rack. The seamless integration of functionality and elegance is a testament to our commitment to impeccable craftsmanship.

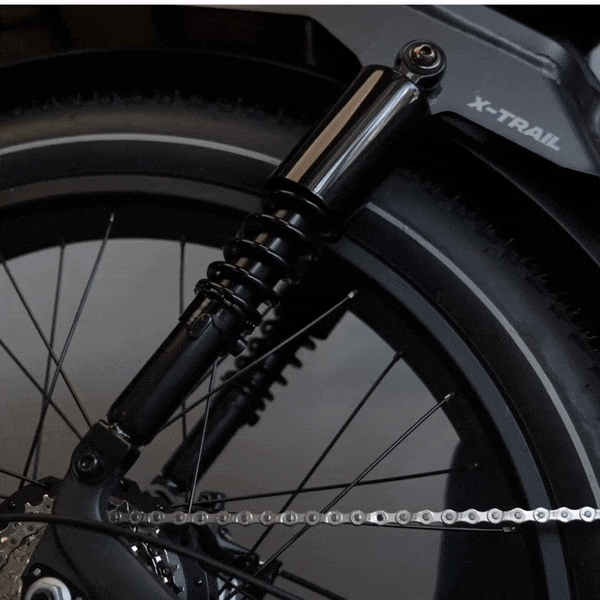

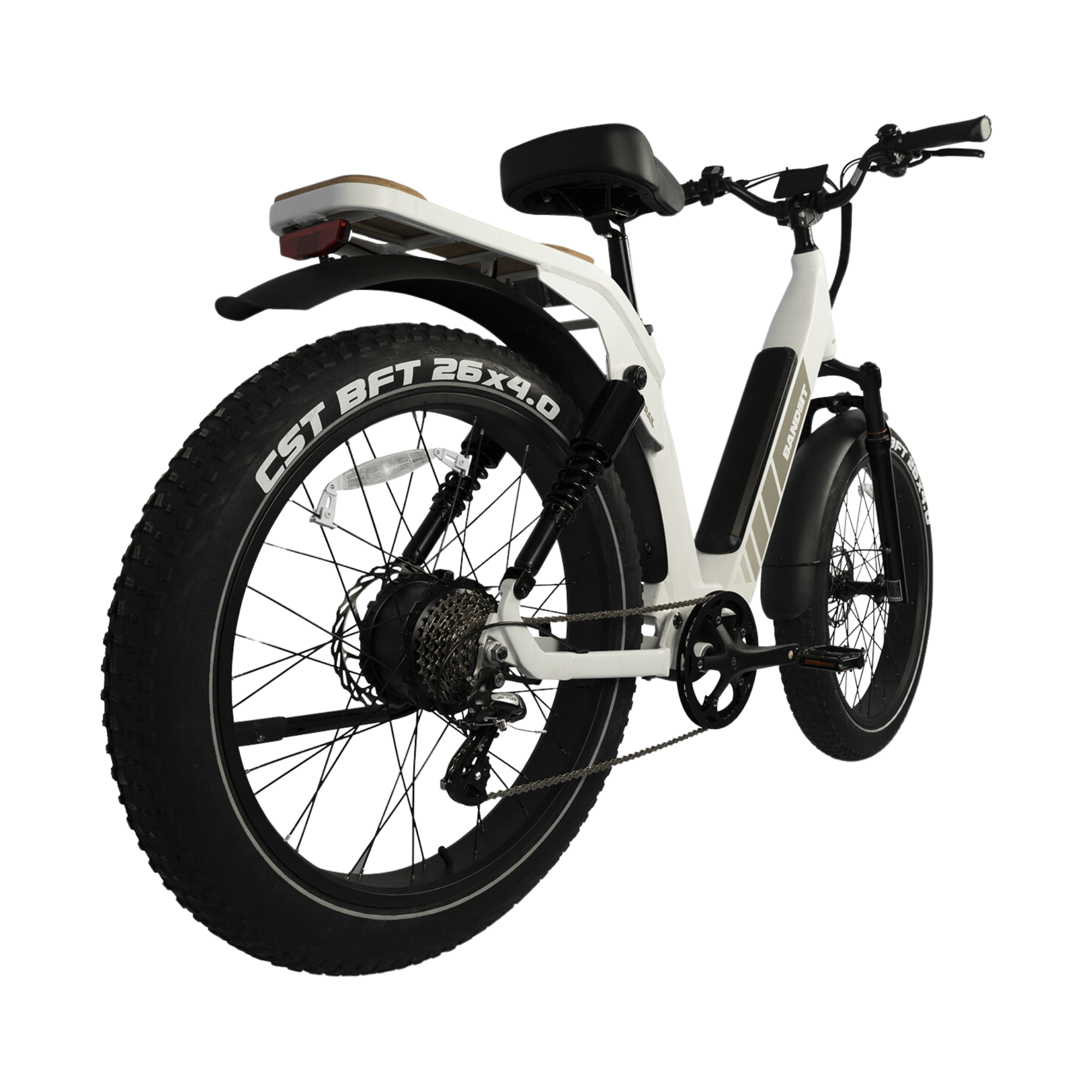

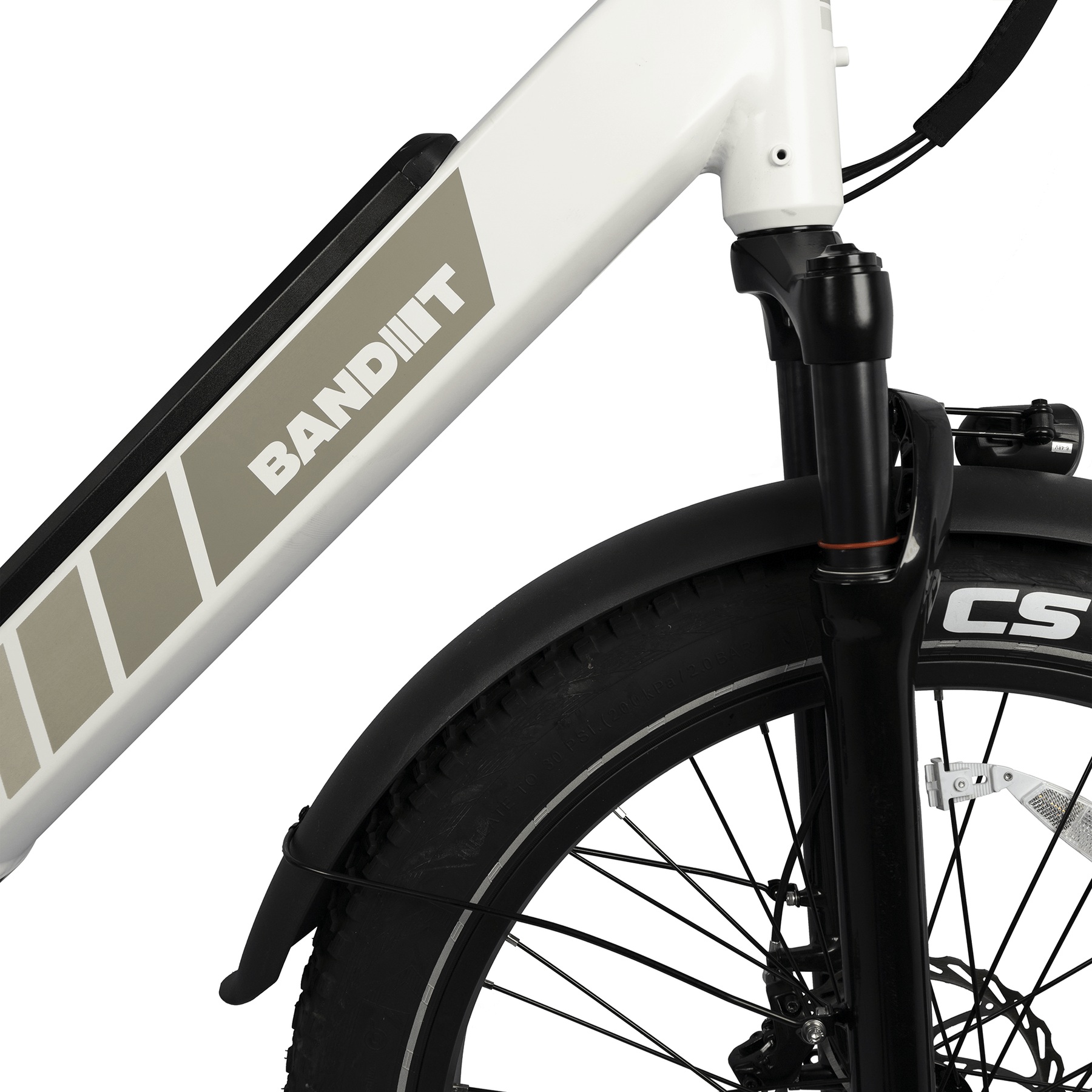

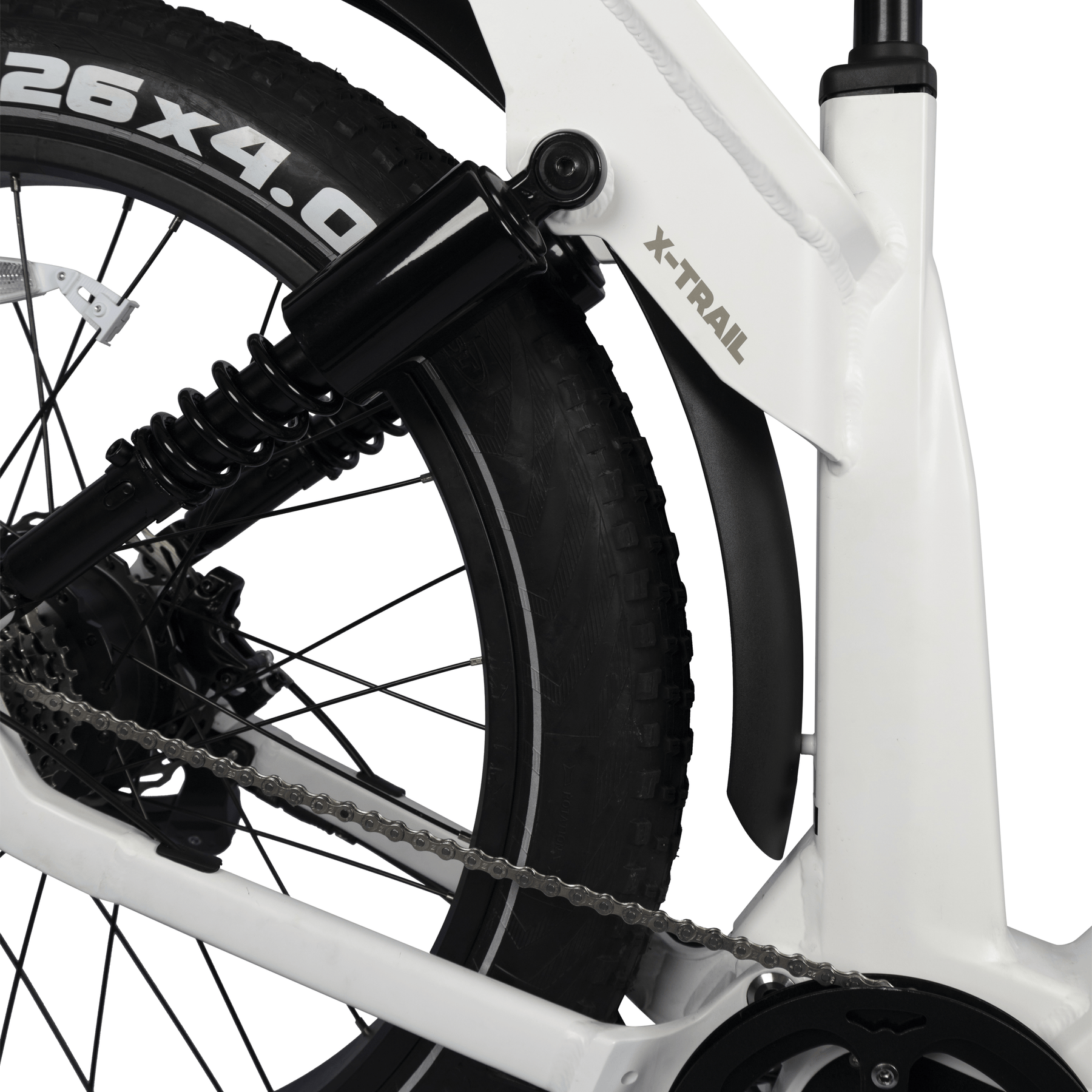

FULL SUSPENSION

With front hydraulic suspension featuring a convenient lockout and rear spring suspension, every bump and obstacle is effortlessly absorbed, ensuring a smooth and comfortable journey. Unleash your adventurous spirit and conquer any terrain with confidence.

Product Details

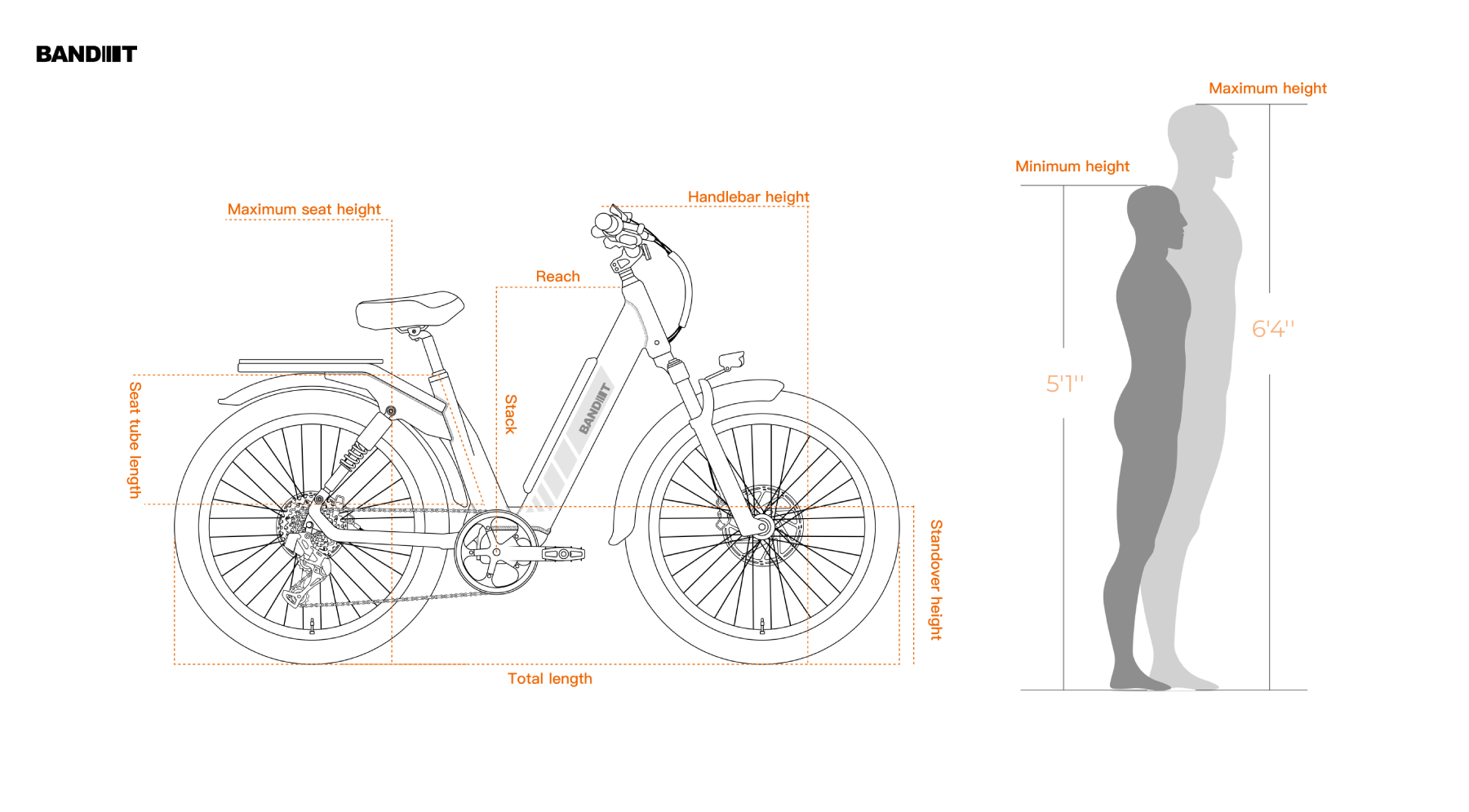

Size and Fit
Weight 88 lbs
Reach 17’’
Stack 27.7’’
Minimum Seat Height 34"
Maximum seat height 43.7’’
Seat tube length 16’’
Total length 76"
Handlebar height 45.5’’
Standover height 16’’’
Minimum height 5'1’’
Maximum height 6’6’’
Maximum Load 440lbs
Technical Specifications
Battery(WH) 720 wH Battery
Charging Time 5 Hrs
Top Speed 28+ MPH
Charger MDA 48V 2Amp
Motor Power(W) 750 W 75N.M Torque
Controller(V,W) 48V 750W 18A
Throttle Style Thumb Throttle
Display Type Horizontal LCD Smart Color Display
Top Speed 28+ MPH

Range

Battery (wH)

720 wH Battery

Charging Time

5 Hrs

Top Speed

28+ MPH

Charger

MDA 48V 2Amp

Charging Time

5 Hrs

Motor Power (W)

750 W 75N.M Torque

Controller (V, W)

48V 750W 18A

Throttle Style

Thumb Throttle

Display Type

Horizontal LCD Smart Color Display

Pedal Assist

6 Levels

USB Ports

YES

Wiring

Water resistant connectors and wiring harness

Components

Frame

6061 Aluminum

Fork

Aluminum Fork for 26'' Tire

Handlebar

6061 Alloy Handlebar

Stem

50 mm + 30º

Grips

Velo Rubber Ergo Grips

Bell

Xinxing Integrated Bell

Rims

26'' 36 Hole

Tire Hub

KT Loose Ball 12G, 36H, 145L/QR154L

Tire Spokes

12 Gauge, Stainless Steel

Tires

26'' x 4'' Puncture Resistant Tire

Fenders

Full coverage front and rear fenders with hardware included

Brake Levers

Aluminum alloy levers with motor cutoff switch

Brake Calipers

Hydraulic Calipers

Brake Rotors

180 mm front and rear

Brake Pad Materials

Metallic

Crank Set

48T, 170mm crank length, dual-sided aluminum chainring guard

Freewheel

Shimano 7 Speed Freewheel 14-28T

Chain

KMC  Z8.3

Gearing

1 x 7 Speed

Shifter

7 Speed Shimano Right Shift Lever

Derailleur

7 Speed Shimano Tourney

Saddle

Large Plush Bicycle Seat

Seatpost Dimensions

31.6 mm x 400mm

Seatpost Clamp

Bolt on

Pedals

111 mm x 105 mm boron steel axel, Standard 9/16″ thread with reflectors

Kickstand

Heavy-duty aluminum with wide plastic foot

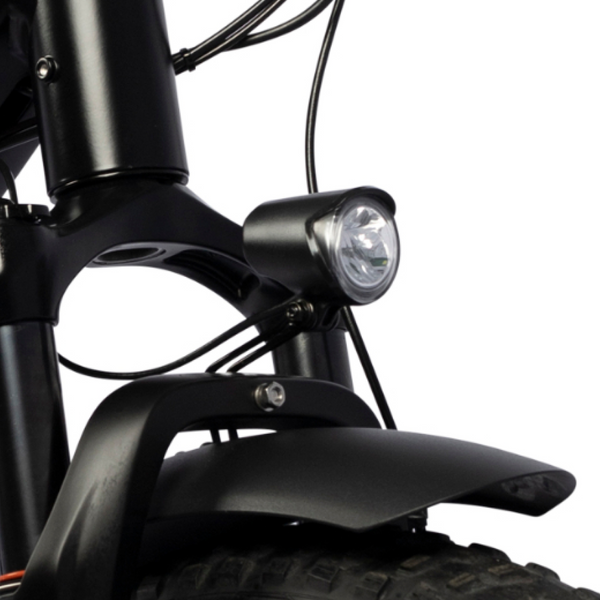

Front Light

Waterproof front LED headlight

Tail Light

Rear integrated lights

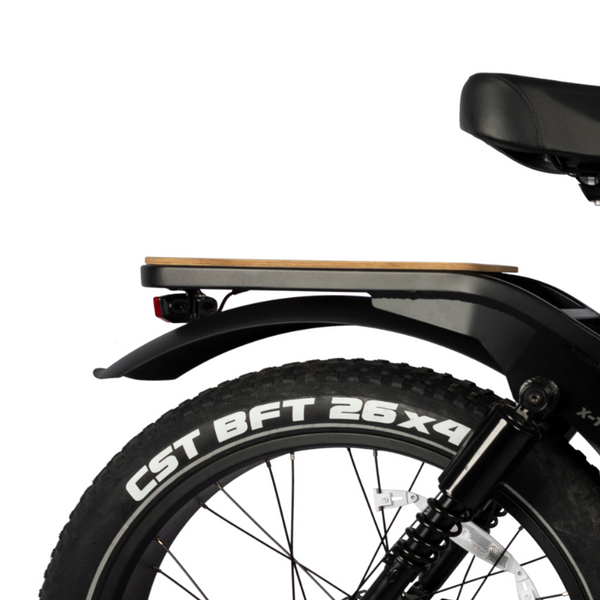

Rear Rack

YES

Sensor

Cadence Sensor
